  11. Plate Caster, 550 lb. Ld Rating, Ball

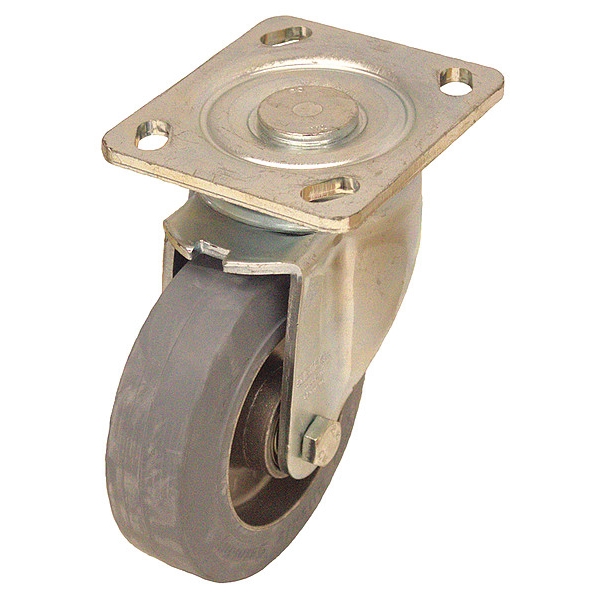

Zoro Select Plate Caster, 550 lb. Ld Rating, Ball LH-ALEV 125K-14-SG - main

Plate Caster, 550 lb. Ld Rating, Ball

  • Mfr # LH-ALEV 125K-14-SG

  • Zoro # G7279583

product price: $96.65
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-ALEV 125K-14-SG
Zoro #
G7279583
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1 5/8 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Overall Height
6-1/2in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
1 5/8 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
10 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Load Rating
550 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. ALEV 125/15K-SG
Caster Brake Included
No
Extended Lead
No
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Wheel Color
Gray
Thread Guards
No
Features
Floor Protective, Noise Reduction
Swivel Construction
Kingpin
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Soft
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
ESD Conductive
No
Load Capacity
550 lb
Accessories
Optional: RI-04.14 (Directional Lock)
Tread Color
Gray
Series
LH Series
Load Capacity - Maximum
550 lb
Compatible With
ALEV 125/15K-SG
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 5/8 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
