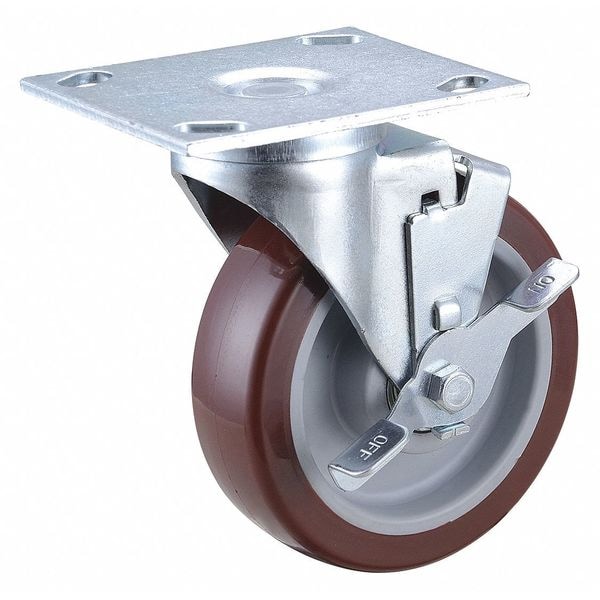

Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type B

  • Mfr # 33J042

  • Zoro # G4805297


product price:  $20.15
/ea

Key Features

Caster Sub-Type
Swivel
Caster Brake Type
Side Brake
Wheel Dia.
5 in
Wheel Width
1 1/2 in
Mounting Height
6 3/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33J042
Zoro #
G4805297
UPC #
190735900888
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/2 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
6-3/16in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Caster Brake Type
Side Brake
Load Rating
450 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Maroon
Includes
Dust Cover
Replacement Wheel
IX0500106G
Standards
NSF Listed
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Caster Temp. Range Available
Yes
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Load Capacity - Maximum
450 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
