  11. Swivel Plate Caster, Therm Rubber, 4 in., 242 lb.

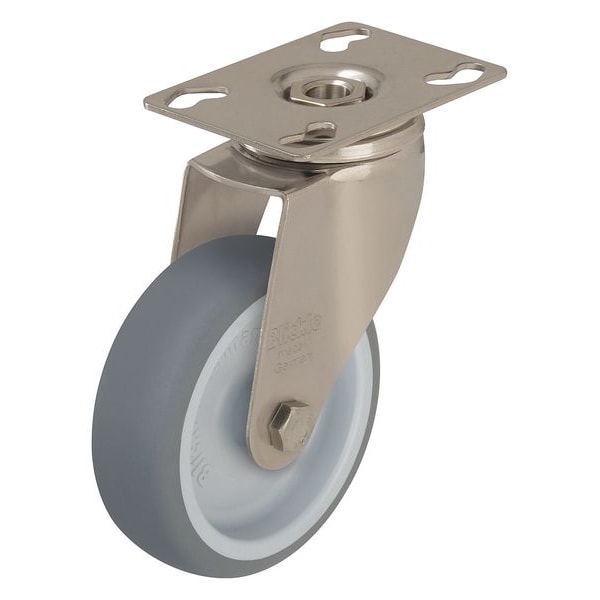

Zoro Select Swivel Plate Caster, Therm Rubber, 4 in., 242 lb. LKPXA-TPA 101G - main

Swivel Plate Caster, Therm Rubber, 4 in., 242 lb.

  • Mfr # LKPXA-TPA 101G

  • Zoro # G0385659

product price: $42.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKPXA-TPA 101G
Zoro #
G0385659
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 3/8 in
Mounting Plate Size
2-5/8in x 3-9/16in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/8in
Stem Dia.
No Stem
Swivel Radius
90 mm
Mounting Plate Width
66 mm
Mounting Plate Length
90 mm
Inside Slot Spacing - Length
61 mm
Inside Slot Spacing - Width
45 mm
For Axle Dia.
8 mm
Outside Slot Spacing - Length
75 mm
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
51 mm
Bolt Hole Spacing - Length
2.969 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Caster Brake Type
No Brake
Load Rating
240 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Inside Bolt Hole Spacing
51 mm x 61 mm
Caster Plate Hole Pattern
B
Wheel Color
Gray
Features
Corrosion Resistant
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. TPA 101/12G
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
No
Caster Brake Included
No
Extended Lead
No
Frame Finish
Stainless Steel
Standards
RoHS, ICWM, NSF
Tread Color
Gray
Tread
Standard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Nylon
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Series
LKPXA Series
ESD Conductive
No
Load Capacity
110 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
245 lb
Compatible With
TPA 101/12G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel, Plate Caster, Load Rating 240 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
