Shop BALDOR-RELIANCE

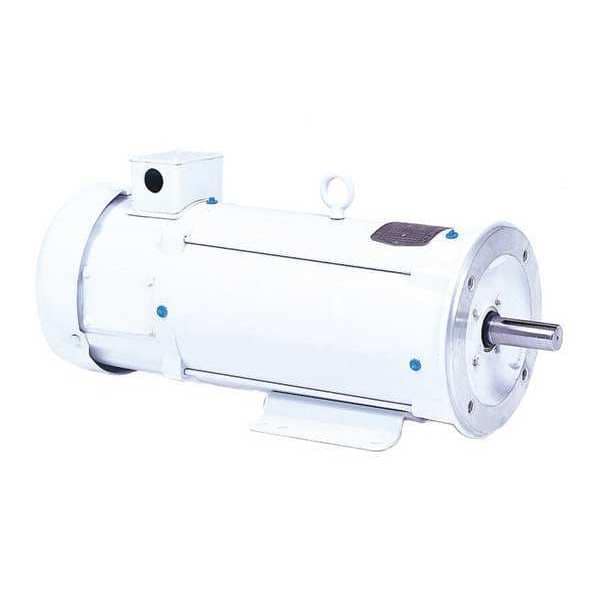

DC Motor, 2 HP, 1750 rpm, 180V, K145TC, TEFC

  • Mfr # CDPWD3330
  • Zoro # G8051797
product price:
$
1,347.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Voltage
180V DC
Nameplate RPM
1,750 RPM
Shaft Dia.
7/8 in
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CDPWD3330
Zoro #
G8051797
UPC #
781568133835
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 3/16 in
Overall Length
19 5/16 in
Length Less Shaft
17 3/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 15/16 in
Frame Size
56C
Shaft Diameter
7/8 in
Wire Rope Length
19 5/16 in
Length
19 5/16 in

Details

Item
DC Permanent Magnet Motor
HP
1/2
Voltage
180V DC
Nameplate RPM
1,750 RPM
Frame
56C
Full Load Amps
9.5 A
RPM Range
1,701-1,800
Motor Thermal Protection
None
Motor Application
General Application
Motor Mounting Type
Rigid Base
Standards
UL, CSA
Ins. Class
H
Voltage Compatibility
180V DC
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Stud Quantity
4
Max. Ambient Temp.
40 Degrees C
Brush Type
Carbon
Motor Design
Permanent Magnet DC
Full Load Torque
72 in-lb
Motor Service Factor
1
Weight
32 lb
Duty Cycle
Continuous
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
78.8 %
Motor Bearings
Ball
Insulation Class
F
Bearing Type
Ball
Nameplate Voltage
180V DC
Full Load Current
9.5 A
Nameplate Service Factor
1
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C

Description

Permanent Magnet Motor,1/2 HP,1750 rpm

Restrictions

Hazardous material
