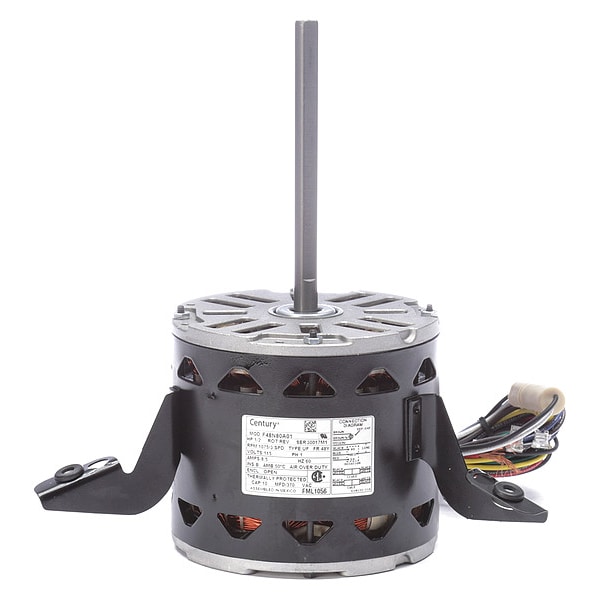

Shop CENTURY

1/2 HP, 1075 RPM, 115v, 3 speed, 8.0 amps

  • Mfr # FML1056
  • Zoro # G3261730
product price:
$
294.99
/ea
Free Shipping & Returns

Key Features

Duty
Continuous
Voltage Compatibility
115V AC
Shaft Dia.
1/2 in
RPM Range
1,001-1,100
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FML1056
Zoro #
G3261730
UPC #
-
Country of Origin
India
Duty
Continuous
Item
Condenser Fan Motor
Voltage Compatibility
115V AC
RPM Range
1,001-1,100
Phase
Single
No. of Speeds
3
Capacitor Required
Capacitor Not Included
Frame
48Y
Hz
60 Hz
Ins. Class
B
Motor Mounting Type
Lug
Motor Thermal Protection
Auto
Motor Mounting Position
Horizontal
Nameplate RPM
1,075
Standards
CSA Certified, UL Listed
Motor Enclosure Design
Open Air-Over
Motor Design
Permanent Split Capacitor
Application
Condenser Fan
Motor Shaft Design
Flat
Max. Ambient Temp.
50 Degrees C
Motor Service Factor
1
Voltage
115V AC
Motor Application
HVAC/R
Motor Sub Application
Fan Coil; Room Air Conditioner; Blower
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
HP
1/2
Full Load Amps
8.5 A
Frame Material
Steel
Insulation Class
B
Mounting Position
Horizontal
Motor Enclosure Type
Open Air Over
Number of Speeds
3
Product Type
Condenser Fan Motor
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
8.5 A
Drive Type
Direct Drive
Frequency
60 Hz
Shaft Design
Flat
Wattage
370 W
Ambient Temperature - Maximum
50 Degrees C
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 8.5 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel, Motor Mounting Position Horizontal
