Shop CENTURY

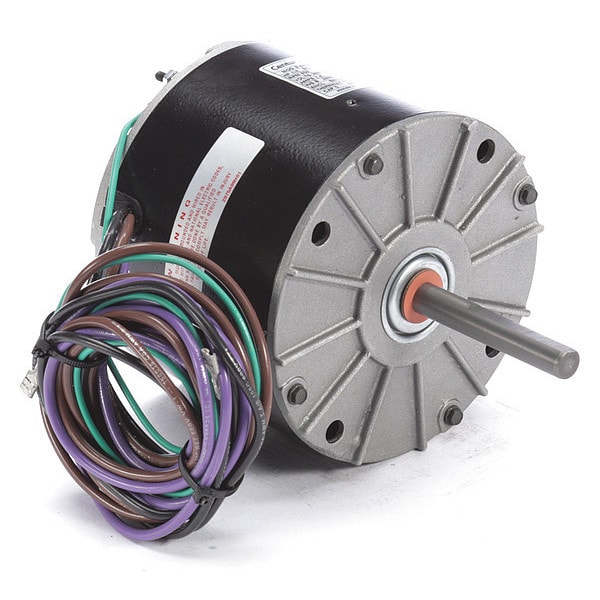

1/4 HP Condenser Fan Motor, 850 RPM, 208-230V

  • Mfr # OYK1028

  • Zoro # G1557595

product price:  $262.99
/ea
Free Shipping & Returns

Key Features

Frame
48Y
HP
1/4 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OYK1028
Zoro #
G1557595
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2"
Shaft Length
3.2"
Length Less Shaft
4 13/16 in
Bolt Circle Dia.
5-3/16"
Body Dia.
5-5/8"
Manufacturers Warranty Length
1 yr
Overall Length
7.98"
Bolt Circle Diameter
5 3/16 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.7 in
Wire Rope Length
8 in

Details

Frame
48Y
HP
1/4 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
850 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
York
Phase
1
RPM Range
0-1000
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
024-25119-000
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.4 A
Capacitor Required
2MDV4
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Motor Mounting Position
Vertical Shaft Down
Weight
12 lb
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Rotation
CWLE
Mounting
Stud
Number of Speeds
1
Product Type
Condenser Fan Motor
Shaft Design
Flat
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 60 Hz
1
Compatible Capacitor Manufacturer Model Number
2MDV4
Frame Material
Steel
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Sub Application
Condenser Fan
Mounting Position
Vertical Shaft Down
Full Load Current @ 60 Hz
1.4 A
Compatible Brand
York

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.4 A, 48Y Frame, OEM Replacement Brand York, Replacement For 024-25119-000, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over
