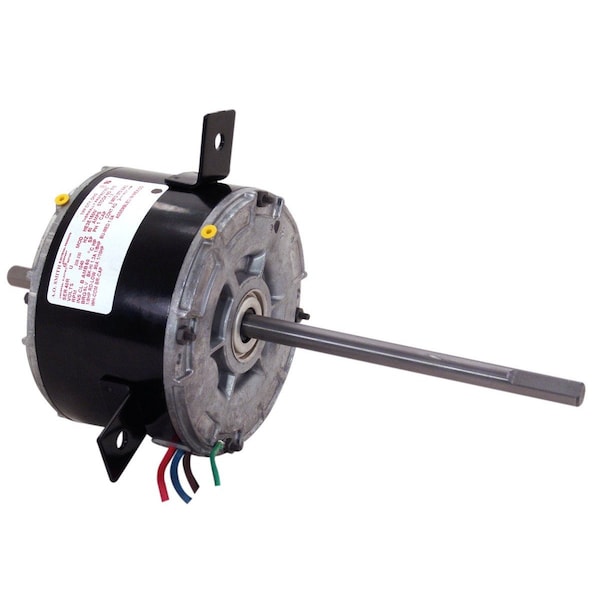

513A Replacement Motor - 1/6 HP, 208-230V, 1040 RPM
Mfr # U513
Zoro # G323932078
product price:Â
$
437.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
TEAO
Motor Shaft Rotation
DS
Body Dia.
5.6 in
Hz
60
Nameplate RPM
1,040 RPM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- U513
- Zoro #
- G323932078
- UPC #
- -
- Country of Origin
- Unknown
Dimensions
- Body Dia.
- 5.6 in
Details
- Motor Enclosure Design
- TEAO
- Motor Shaft Rotation
- DS
- Hz
- 60
- Nameplate RPM
- 1,040 RPM
- No. of Speeds
- 3
- Frame
- 48Y
- HP
- 0.17
- Motor Bearings
- Sleeve
Description
Century PEM-U513 OEM replacement motor, PSC 1/6 HP (.167 HP, 0.13 kW) running at 1040 RPM for 208-230V single-phase systems, frame 48Y, TEAO (Totally Enclosed Air Over) enclosure and CWLE rotation. Rolled steel frame, sleeve/sleeve bearings, lug bracket horizontal mount, flat 0.500 in shaft (7.00 in extension with 2.140 in flat), amperage 1.3/0.8/0.6; UL recognized, CSA certified; 10.1 lb.
