Shop CENTURY

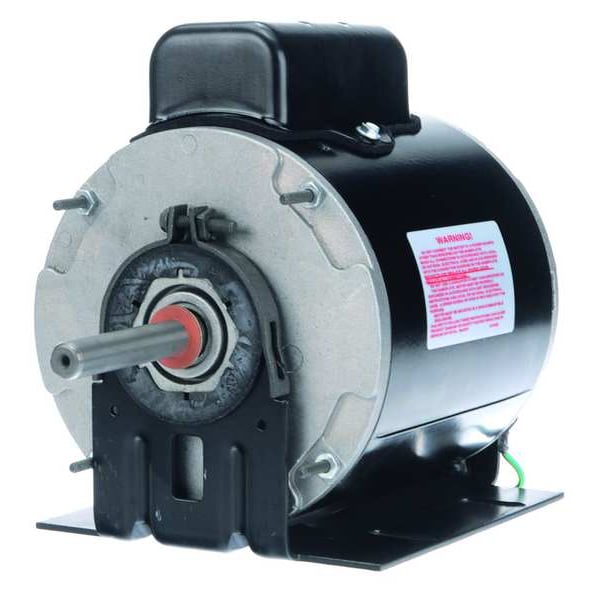

Motor, PSC, 1/4 HP, 1100, 115/230V, 48Z, TEAO

  • Mfr # C045A

  • Zoro # G0755711

product price:  $272.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
4.0/2 A
Stud Size
#8-32
Motor Sub Application
Direct Drive Fan
Voltage Compatibility
115/200-230V AC, 115/208-230, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame
48Z
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C045A
Zoro #
G0755711
UPC #
-
Country of Origin
Mexico

Dimensions

Stud Size
#8-32
Overall Length
9 3/4 in
Resilient Ring Dia.
2 1/2 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 3/16 in
Body Dia.
5 5/8 in
Shaft Length
3 1/4 in
Mounting Stud Length
5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
7 in

Details

Full Load Amps
4.0/2 A
Motor Sub Application
Direct Drive Fan
Voltage Compatibility
115/200-230V AC, 115/208-230, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame
48Z
Mounting Stud Location
Shaft End
Duty
Continuous
Phase
Single
Voltage
115/230V AC
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Ring to Ring Center
6 1/2 in
Motor Application
Agriculture
Hz
60 Hz
Ins. Class
B
Motor Enclosure Design
Totally Enclosed Air-Over
Includes
Resilient Base
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Capacitor Required
Capacitor Included
Motor Bearings
Ball
HP
1/4 hp
Motor Mounting Position
All Angle
Item
Farm Duty Motor
Nameplate RPM
1,100 RPM
Application
Blowers, Fans and Air Circulators
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
Cradle Base
RPM Range
1,001-1,100
Motor Thermal Protection
Auto
Motor Design
Permanent Split Capacitor
Motor Shaft Design
Double Flat
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Stud Quantity
4
Usable @ 208V
Not Usable at 208V
Weight
16 lb
Motor Frame Material
Steel
Mounting Holes
(4) #10-32
Mounting
Cradle Base
Number of Speeds
1
Duty Cycle
Continuous
Drive Type
Direct Drive

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.0/2 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
