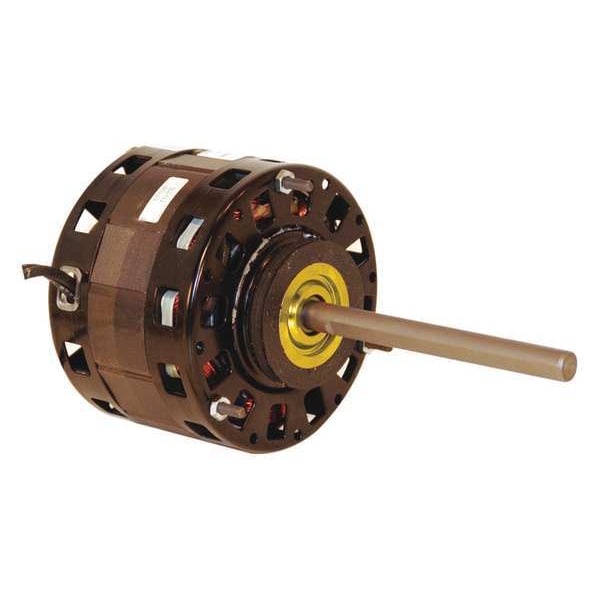

Motor, Sh Pole, 1/5 HP, 1050,115V, 42Y, OAO
Mfr # BL6416
Zoro # G2897167
product price:Â $184.99
/ea
Free Shipping & Returns
Key Features
Nameplate RPM
1,050
HP
1/5
Bolt Circle Dia.
4 7/16 in
Phase
Single
Capacitor Required
Capacitor Not Required
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
BL6416
Zoro #
G2897167
UPC #
-
Country of Origin
Mexico
Dimensions
Bolt Circle Dia.
4 7/16 in
Length Less Shaft
4 15/16 in
Stud Size
#10-32
Body Dia.
5 in
Shaft Dia.
1/2 in
Shaft Length
2 11/16 in
Resilient Ring Dia.
2 1/2 in
Lead Length
35 in
Overall Length
6 1/2 in
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
4 7/16 in
Body Diameter
5 in
Frame Size
42Y
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
1/2 in
Description
Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/5 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 4, Voltage 115V AC, 7.01 A Full Load Amps, 42Y Frame, Output Watts 150W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
