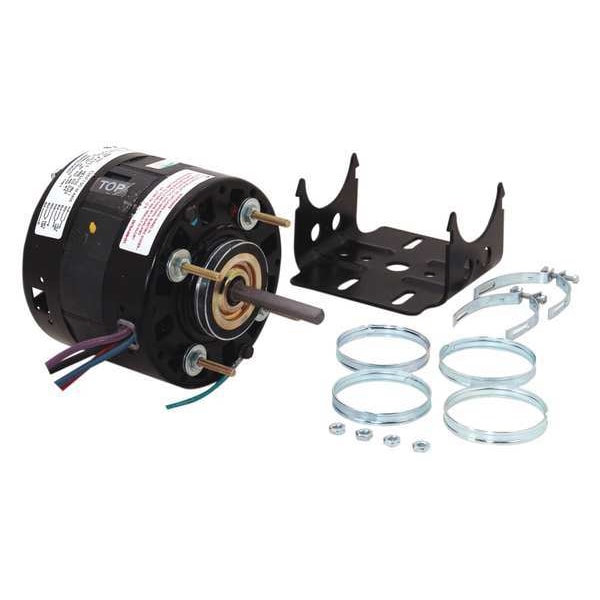

Century Mtr, Sh Pole, 1/10 HP, 1050,115/208-230, 42Y RF6403 - main

Mtr, Sh Pole, 1/10 HP, 1050,115/208-230, 42Y

  • Mfr # RF6403

  • Zoro # G1793836

product price: $205.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Refrigerator/Freezer
Hz
60 Hz
Full Load Amps
4.0/2.0 A
Motor Application
HVAC/R
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RF6403
Zoro #
G1793836
UPC #
-
Country of Origin
Mexico

Dimensions

Stud Size
#10-32
Length Less Shaft
4 15/16 in
Shaft Dia.
3/8 in
Resilient Ring Dia.
2 1/4 in
Shaft Length
2 1/4 in
Body Dia.
5 in
Bolt Circle Dia.
3 1/2 in
Overall Length
7 3/16 in
Lead Length
29 in

Details

Motor Sub Application
Refrigerator/Freezer
Hz
60 Hz
Item
HVAC Motor
Full Load Amps
4.0/2.0 A
Motor Application
HVAC/R
Phase
Single
Motor Bearings
Sleeve
HP
1/10
Mounting Stud Pattern
2-1/2 in x 2-1/2 in
Nameplate RPM
1,050
Includes
Extended Studs, Hex Nuts, Mounting Clamps, Mounting Ring Adaptors, Resilient Rings
Motor Mounting Type
Ring/Stud
Motor Service Factor
1
Frame
42Y
Capacitor Required
No
Motor Shaft Rotation
CCWLE
RPM Range
1,001-1,100
Ring to Ring Center
4 9/16 in
Duty
Continuous
Ins. Class
A
Motor Thermal Protection
Auto
Motor Design
Shaded Pole
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Shaft Design
Flat
No. of Speeds
1
Voltage
115/208-230V AC
Mounting Stud Location
Shaft End
Motor Mounting Position
All Angle
Motor Enclosure Design
Open Air-Over
Standards
CSA Certified, UL Recognized
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
No
Usable @ 208V
Yes
Weight
12 lb
Duty Cycle
Continuous
Mounting Holes
4
Stud Quantity
4
Number of Shafts
1
RPM @ 50Hz
900 RPM
Mounting
Cradle Base
Number of Speeds
1

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.0/2.0 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
