Shop CENTURY

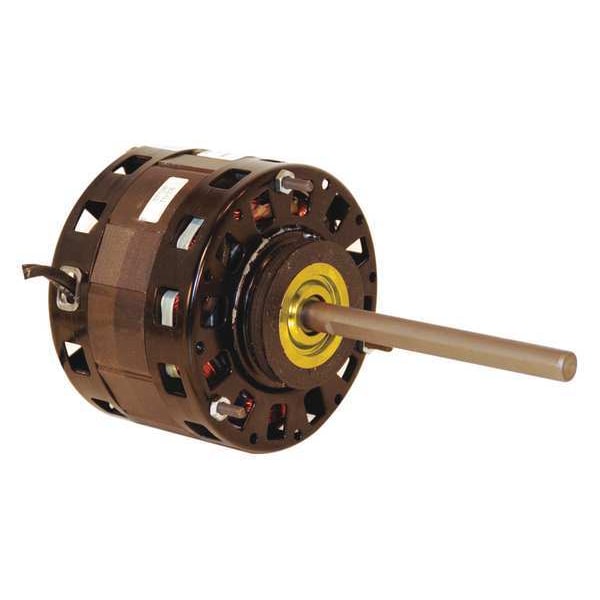

Motor, Sh Pole, 1/8 HP, 1050,115V, 42Y, OAO

  • Mfr # BL6410

  • Zoro # G1609404

product price:
$
134.99
/ea
Free Shipping & Returns

Key Features

Length Less Shaft
4 7/16 in
Mounting Stud Pattern
4 7/16 in, 3 Stud
Bolt Circle Dia.
4 7/16 in
Motor Service Factor
1
Motor Application
HVAC/R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BL6410
Zoro #
G1609404
UPC #
-
Country of Origin
Mexico
Mounting Stud Pattern
4 7/16 in, 3 Stud
Motor Service Factor
1
Motor Application
HVAC/R
HP
1/8
Includes
Resilient Mounting Ring
Voltage
115V AC
Motor Shaft Design
Flat
Motor Design
Shaded Pole
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,050
Motor Mounting Type
Ring
Hz
60 Hz
No. of Speeds
1
Motor Thermal Protection
Auto
Ring to Ring Center
4 1/16 in
RPM Range
1,001-1,100
Motor Mounting Position
Horizontal
Phase
Single
Standards
UL Recognized
Duty
Continuous
Frame
42Y
Application
Fan/Blower
Item
Fan and Blower Motor
Motor Shaft Rotation
CCWLE
Ins. Class
A
Capacitor Required
Capacitor Not Required
Motor Sub Application
Direct Drive Fan/Blower
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Full Load Amps
5.02 A
Usable @ 200V
Not Usable at 200V
Mounting Holes
4
Usable @ 208V
Not Usable at 208V
Number of Shafts
1
Stud Quantity
4
Weight
9 lb
Motor Frame Material
Steel
Number of Speeds
1
Mounting
Ring
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Full Load Current @ 60 Hz
5.02 A
Bearing Type
Sleeve
Sub Application
General Purpose
Wattage
90 W
Mounting Position
Horizontal
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Product Type
Fan and Blower Motor
Insulation Class
A
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/8 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115V AC, 5.02 A Full Load Amps, 42Y Frame, Output Watts 90 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
