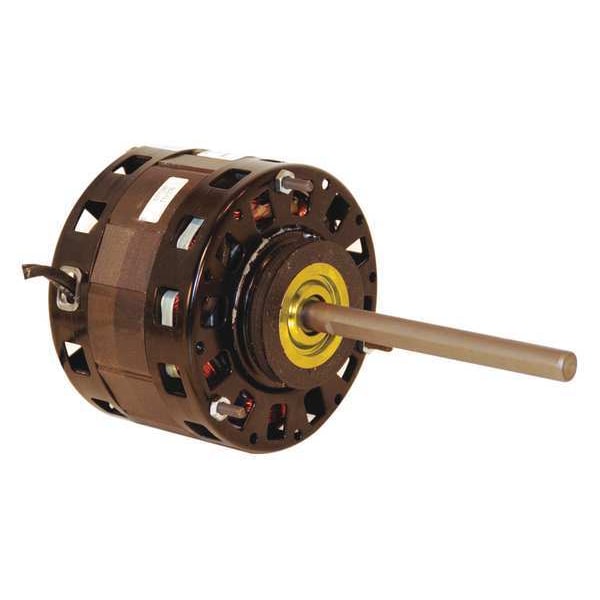

Motor, Sh Pole, 1/5 HP, 1050, 115V, 42Y, OAO

CENTURY| Zoro #: G0605656| Mfr #: BL6414

$91.88 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0605656 Mfr #: BL6414
Body Dia.: 5"Motor Shaft Design: Flat
Hz: 60Motor Service Factor: 1.00
Motor Bearings: SleeveMotor Application: HVAC/R
Phase: 1Capacitor Required: No
Max. Ambient Temp.: 40 Degrees CMotor Sub Application: Direct Drive Fan/Blower
Motor Enclosure Design: Open Air-OverItem: Direct Drive Blower Motor
HP: 1/5Motor Thermal Protection: Auto
Motor Design: Shaded PoleShaft Dia.: 1/2"
Duty: ContinuousStandards: UL Recognized, CSA Certified
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Bolt Circle Dia.: 4-7/16"
Mounting Stud Pattern: 3-1/8" x 3-1/8"Frame: 42Y
Ins. Class: AMotor Shaft Rotation: CCWLE
Voltage: 115Motor Mounting Position: All Angle
Shaft Length: 5"Motor Mounting Type: Ring
Nameplate RPM: 1050No. of Speeds: 3
Includes: Resilient Mounting RingsResilient Ring Dia.: 2-1/2"
Full Load Amps: 6.5Ring to Ring Center: 4-9/16"
Application: Blowers, Fans and Air CirculatorsLength Less Shaft: 4-15/16"
Stud Size: #10-32Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Shaded Pole Motor Type, Open Air-Over Enclosure, 1/5 HP, 1050 Nameplate RPM, Voltage 115, 6.5 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class A, Duty Continuous, Number of Speeds 3, Mounting Ring, Bearings Sleeve, Thermal Protection Auto, Rotation CCWLE, Body Dia. 5 In., Length Less Shaft 4-15/16 In., Shaft Dia. 1/2 In., Shaft Length 5 In., Shaft Type Flat, Includes Resilient Mounting Rings
