Shop CENTURY

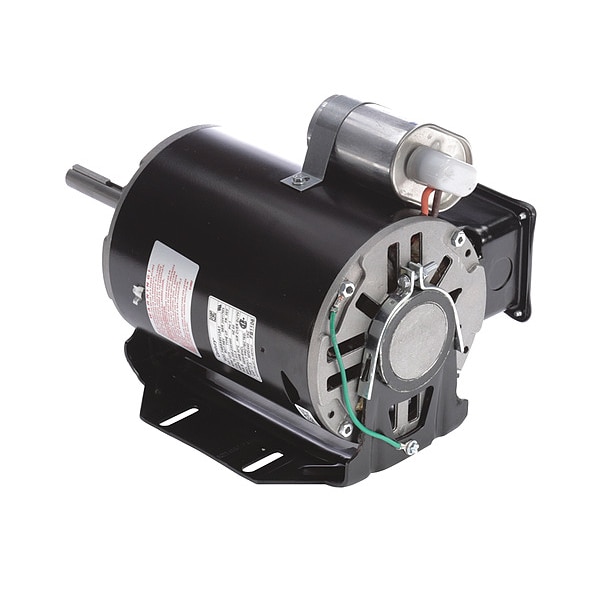

Outdoor Condenser Fan Motor

  • Mfr # FB1106

  • Zoro # G0792130

product price:  $660.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FB1106
Zoro #
G0792130
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
4 3/32 in
Overall Length
12 27/32 in
Body Dia.
5 5/8 in
Length Less Shaft
8 23/32 in
Shaft Diameter
5/8 in
Frame Size
56Y
Body Diameter
5.6 in

Details

Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan; Heat Pump
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Service Factor
1
Capacitor Required
Capacitor Included
Application
Condenser Fan
Standards
CSA Certified, UL Listed
Ins. Class
B
Motor Bearings
Ball
Motor Shaft Design
Keyed
Hz
60 Hz
Full Load Amps
7.6/3.8 A
Ambient Temperature - Maximum
60 Degrees C
Wattage
750 W
Usable @ 208V
Usable at 208V
Product Type
Condenser Fan Motor
Mounting Position
Horizontal
Drive Type
Direct Drive
Bearing Type
Ball
Shaft Design
Keyed
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Number of Speeds
1
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Full Load Current @ 60 Hz
7.6/3.8 A
Frame Material
Steel

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.6/3.8 A Full Load Amps, 56Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
