Shop CENTURY

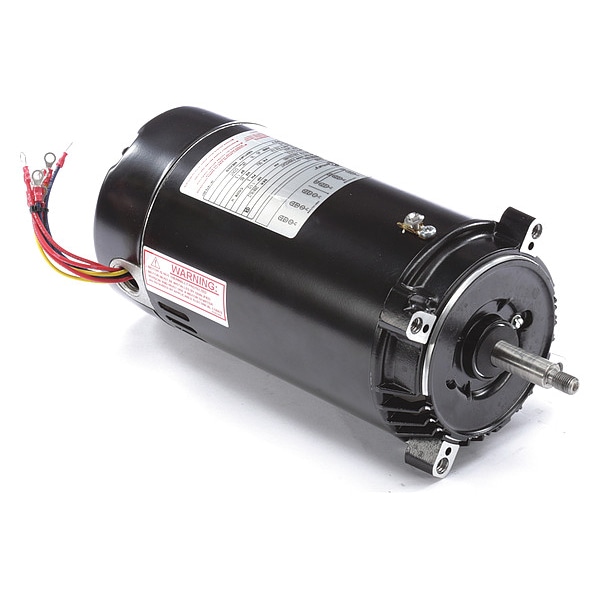

Pool Pump Motor, 3-Phase, 1 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # T3152

  • Zoro # G0787851

product price:  $492.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1 1/2
RPM Range
3,001-3,600
Motor Service Factor
1.3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T3152
Zoro #
G0787851
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 1/2 in
Bolt Circle Dia.
3/8 in
Manufacturers Warranty Length
2 yr
Body Dia.
5.6 in
Length Less Shaft
11 5/16 in
Overall Length
13 7/8 in
Height
5 5/8 in
Bolt Circle Diameter
3/8 in
Body Diameter
5.6 in
Frame Size
56J
Shaft Diameter
5/8 in
Wire Rope Length
13 7/8 in

Details

Item
Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1 1/2
RPM Range
3,001-3,600
Motor Service Factor
1.3
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCW
Voltage
208-230/460V AC
Phase
Three
Motor Mounting Type
Face
Full Load Amps
5.0/2.5 A
Voltage Compatibility
208V AC, 230V AC, 460V AC
Standards
CSA
Motor Application
Pool and Spa Pump
Motor Sub Application
Jet Pump
Shaft Material
Stainless Steel
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
None
Hz
60 Hz
Ins. Class
B
Weight
26 lb
Usable @ 200V
Usable at 200V
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 208V
Usable at 208V
Motor Frame Material
Rolled Steel
Motor Shaft Design
Threaded
Duty Cycle
Continuous
Conduit Box Location
Interior
Inverter Rated
Not Inverter Rated
Regreasable Bearings
Permanently Lubricated Bearings
Number of Wires
9
Max. SF Amps
6.80/3.40 A
Sub Application
Jet Pump
Service Factor Current
6.80/3.40 A
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.3
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
2 yr
Insulation Class
B
Shaft Design
Threaded
Number of Speeds
1
Frequency
60 Hz
Application
Pump
Full Load Current @ 60 Hz
5.0/2.5 A
Bearing Lubrication Type
Permanently Lubricated Bearings
Bearing Type
Ball

Description

Pool Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 3/8 in, Conduit Box Location Interior, Conduit Box Position Not Applicable, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 5.0/2.5 A, Full Load Amps @ 50Hz Not Applicable, Height 5 5/8 in, HP 1 1/2, HP @ 50Hz Not Applicable, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 11 5/16 in, Manufacturers Warranty Length 2 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 6.80/3.40 A
