Shop CENTURY

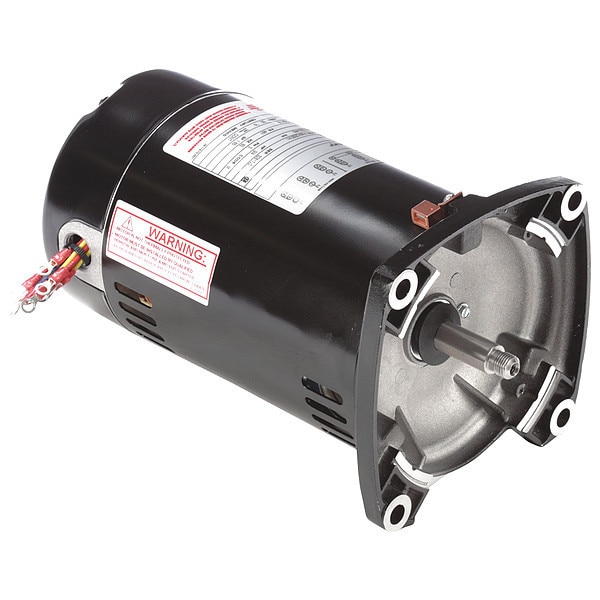

Pool Pump Motor, 3-Phase, 3/4 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # Q3072

  • Zoro # G4482484

product price:
$
383.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
RPM Range
3,001-3,600
Motor Service Factor
1.65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Q3072
Zoro #
G4482484
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 in
Shaft Dia.
5/8 in
Overall Length
10 3/4 in
Length Less Shaft
9 15/16 in
Body Dia.
5.7 in
Height
5 5/8 in
Shaft Dia. (In.)
5/8
Frame Size
48Y
Shaft Diameter
5/8 in
Body Diameter
5.7 in
Wire Rope Length
10 3/4 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
RPM Range
3,001-3,600
Motor Service Factor
1.65
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Three
Voltage
208-230/460V AC
Motor Mounting Type
Face
Full Load Amps
3.6/1.80 A
Motor Thermal Protection
None
Motor Bearings
Ball
Motor Efficiency Group
Standard Efficient
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
B
Shaft Material
Stainless Steel
Finish
Black
Standards
CSA
Ambient Temperature
50 Degrees C
Motor Application
Pump
Shaft
Threaded 1/2-20 UNF-2A RH
Motor Sub Application
Pool and Spa Pump
Motor Flange Material
Aluminum
Max. Ambient Temp.
50 Degrees C
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Duty Cycle
Continuous
No. of Speeds
1
Weight
18 lb
Motor Shaft Design
Threaded
Application
Pump
Frequency
60 Hz
Frame Material
Steel
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.65
Product Type
Pump Motor
Shaft Design
Threaded
Number of Speeds
1
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
50 Degrees C
Full Load Current @ 60 Hz
3.6/1.8 A
Number of Wires
9
Efficiency Rating
Standard Efficiency (IE1)
Sub Application
Pool and Spa Pump
Mounting Position
Horizontal

Description

Pool and Spa Pump Motor, Body Dia. 5.7 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 3.6/1.80, Height 5 5/8 in, HP 3/4, Ins. Class B, Length Less Shaft 9 15/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
