Shop CENTURY

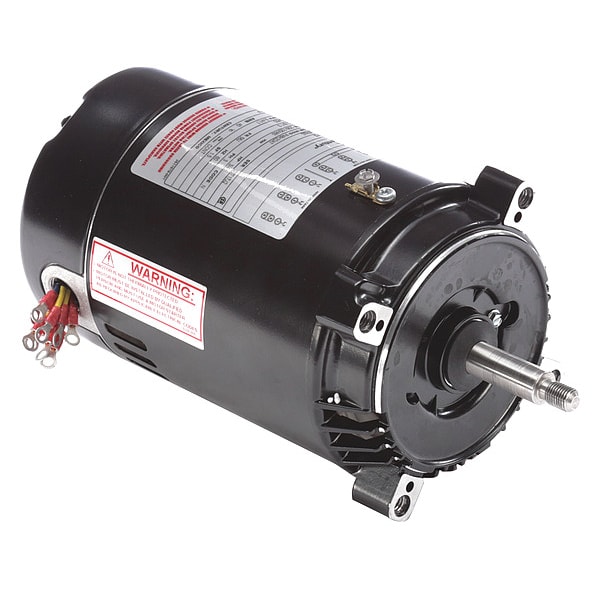

Pool Pump Motor, 3-Phase, 3/4 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # T3072

  • Zoro # G0787827

product price:
$
370.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.5
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T3072
Zoro #
G0787827
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Overall Length
11 11/16 in
Length Less Shaft
9 1/8 in
Height
9 1/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
5.6 in
Frame Size
56J
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Wire Rope Length
11 11/16 in
Length
11 11/16 in

Details

Item
Pool Filter Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.5
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCW
Phase
Three
Voltage
208-230/460V AC
Full Load Amps
2.6/1.3 A
Motor Mounting Type
Round
Motor Application
Pump
Standards
CSA
Shaft Material
Stainless Steel
Ins. Class
B
Motor Bearings
Ball
Motor Thermal Protection
None
Finish
Powder Coated
Motor Sub Application
Jet Pump
Hz
60
Voltage Compatibility
208-230/460V AC
Max. Ambient Temp.
40 Degrees C
Weight
21 lb
No. of Speeds
1
Motor Shaft Design
Threaded
Motor Frame Material
Rolled Steel
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Mounting Position
Horizontal
Max. SF Amps
1.50
Part Winding Start Capable
No
Inverter Rated
Not Inverter Rated
Service Factor Current
1.50 A
Number of Speeds
1
Mounting Position
Horizontal
Insulation Class
B
Sub Application
Jet Pump
Frequency
60 Hz
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Frame Finish
Powder-Coated
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Threaded
Number of Wires
9
Bearing Type
Ball
Product Type
Pump Motor
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
2.6/1.3 A
Nameplate Service Factor @ 60 Hz
1.5

Description

Pool Filter Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Finish Powder Coated, Frame 56J, Hz 60, Full Load Amps 2.6/1.3 A, Height 9 1/8 in, HP 3/4, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 9 1/8 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 1.50, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Rolled Steel

Restrictions

This item has been restricted from sale in the following states: NY
