Century

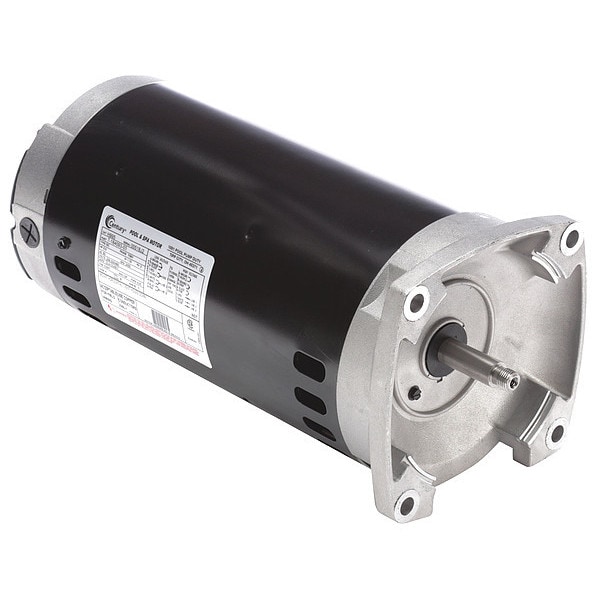

Pool Pump Motor, 3-Phase, 5 HP, 56Y Frame, 3,450 Nameplate RPM

Century Pool Pump Motor,  3-Phase,  5 HP,  56Y Frame,  3,450 Nameplate RPM H995
Tap to zoom
Hover or click to zoom
$753.35
  • Item: Pool Pump Motor
  • Motor Design: 3-Phase
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.

Total: $753.35

Century #H995 Specifications

  • Item: Pool Pump Motor
  • Motor Design: 3-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 5
  • RPM Range: 3,001-3,600
  • Motor Service Factor: 1
  • Nameplate RPM: 3,450
  • Frame: 56Y
  • Motor Shaft Rotation: CW/CCW
  • Phase: Three
  • Voltage: 208-230/460V AC
  • Motor Mounting Type: Face
  • Full Load Amps: 13.4-13.4/6.7
  • Shaft: Threaded 1/2-20 UNF-2A RH
  • Motor Sub Application: Pool and Spa Pump
  • Ins. Class: B
  • Motor Thermal Protection: None
  • Finish: Black
  • Motor Efficiency Group: Standard Efficient
  • Standards: CSA, UL
  • Shaft Material: Stainless Steel
  • Motor Bearings: Ball
  • Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
  • Shaft Dia.: 5/8 in
  • Shaft Length: 15/16 in
  • Motor Flange Material: Aluminum
  • Ambient Temperature: 40 Degrees C
  • Hz: 60
  • Motor Application: Pump
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Shaft Design: Threaded
  • Duty Cycle: Continuous
  • Usable @ 208V: Yes
  • Length Less Shaft: 14 in
  • Motor Frame Material: Steel
  • Height: 6 1/2 in
  • Motor Mounting Position: Horizontal
  • No. of Speeds: 1
  • Overall Length: 14 7/8 in
  • Weight: 44 lb
  • Usable @ 200V: No
  • Bolt Circle Dia.: 7 3/16 in
  • Application: Pool/Spa Motor
  • Country of Origin (subject to change): Mexico

Description

Pool Pump Motor, Motor Enclosure Design Open Dripproof, Motor Thermal Protection None, Phase Three, Standards CSA, UL
