Shop CENTURY

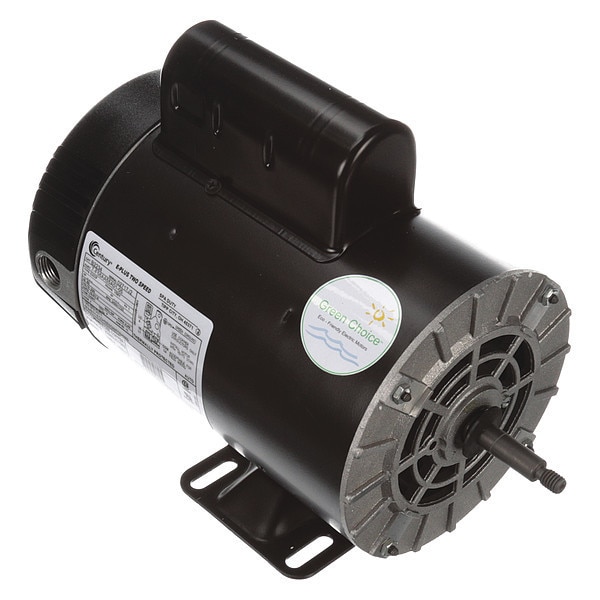

Pool Pump Motor, Capacitor-Start/Run, 1/4, 2 HP, 56Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B2234

  • Zoro # G4482825

product price:  $465.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/4, 2
RPM Range
3,001-3,600
Motor Service Factor
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B2234
Zoro #
G4482825
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 3/8 in
Height
11 in
Overall Length
12 3/4 in
Length Less Shaft
10 3/8 in
Bolt Circle Dia.
5 13/16 in
Body Dia.
6.6 in
Shaft Dia. (In.)
1/2
Bolt Circle Diameter
5 13/16 in
Body Diameter
6.6 in
Shaft Diameter
1/2 in
Frame Size
56Y
Wire Rope Length
12 3/4 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/4, 2
RPM Range
3,001-3,600
Motor Service Factor
1
Nameplate RPM
3,450/1,725
Frame
56Y
Motor Shaft Rotation
CCWSE
Voltage
230V AC
Phase
Single
Full Load Amps
10.0/1.8 A
Motor Mounting Type
Rigid Base
Motor Flange Material
Aluminum
Shaft Material
303 Stainless Steel
Hz
60 Hz
Motor Sub Application
Pool and Spa Pump
Motor Bearings
Ball
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Standards
CSA (LR642), UL (E44549)
Ins. Class
F
Ambient Temperature
50 Degrees C
Motor Thermal Protection
Auto
Finish
Black
Shaft
Threaded 3/8-16 UNC-2A RH
Motor Efficiency Group
Standard Efficient
Motor Application
Pump
Max. Ambient Temp.
50 Degrees C
No. of Speeds
2
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Weight
34 lb
Conduit Box Position
F3
Application
Pump
Motor Enclosure Type
Open Drip Proof
Number of Speeds
2
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Bearing Type
Ball
Number of Wires
15
Ambient Temperature - Maximum
50 Degrees C
Sub Application
Pool and Spa Pump
Product Type
Pump Motor
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Threaded
Insulation Class
F
Mounting Position
Horizontal
Full Load Current @ 60 Hz
10.0/1.8 A

Description

Pool and Spa Pump Motor, Body Dia. 6.6 in, Bolt Circle Dia. 5 13/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 10.0/1.8, Height 11 in, HP 1/4, 2, Ins. Class F, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
