Shop CENTURY

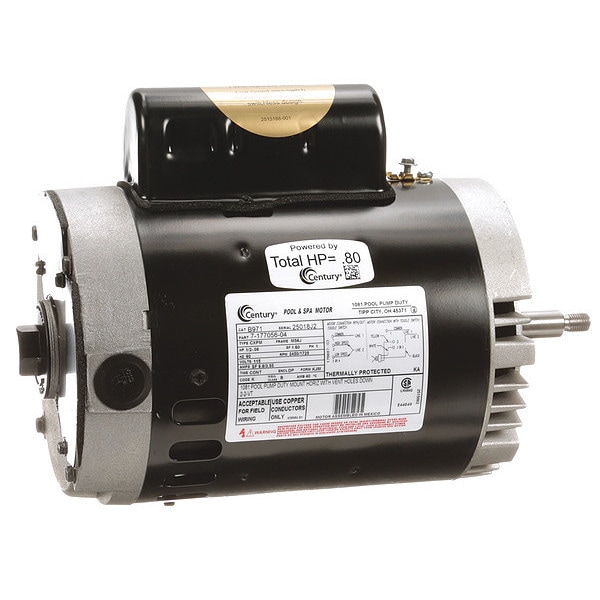

Pool Pump Motor, Permanent Split Capacitor, 1/2, 3/50 HP, 56J Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B971

  • Zoro # G8651229

product price:
$
441.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/2, 3/50
RPM Range
3,001-3,600
Motor Service Factor
1.6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B971
Zoro #
G8651229
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Bolt Circle Dia.
5 15/16 in
Overall Length
12 5/16 in
Length Less Shaft
9 3/4 in
Height
11 in
Body Dia.
6.4 in
Shaft Diameter
5/8 in
Frame Size
56J
Body Diameter
6.4 in
Bolt Circle Diameter
5 15/16 in
Wire Rope Length
12 5/16 in
Length
12 5/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/2, 3/50
RPM Range
3,001-3,600
Motor Service Factor
1.6
Nameplate RPM
3,450/1,725
Frame
56J
Motor Shaft Rotation
CCWSE
Voltage
115V AC
Phase
Single
Full Load Amps
8.8/3.5 A
Motor Mounting Type
Face
Finish
Unfinished
Motor Application
Pump
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Sub Application
Pool and Spa Pump
Ins. Class
B
Shaft Material
303 Stainless Steel
Standards
CSA (LR4642), UL (E44549)
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ambient Temperature
40 Degrees C
Shaft
Threaded
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Motor Flange Material
Aluminum
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
2
Max. SF Amps
8.8
Weight
26 lb
Motor Frame Material
Steel
Motor Shaft Design
Threaded
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F3
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.6
Efficiency Rating
Standard Efficiency (IE1)
Motor Enclosure Type
Open Drip Proof
Frame Finish
Unfinished
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Threaded
Sub Application
Pool and Spa Pump
Number of Wires
11
Frame Material
Steel
Full Load Current @ 60 Hz
8.8/3.5 A
Application
Pump
Product Type
Pump Motor
Bearing Type
Ball
Frequency
60 Hz
Service Factor Current
8.8 A
Number of Speeds
2

Description

Pool and Spa Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 5 15/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Unfinished, Frame 56J, Hz 60 Hz, Full Load Amps 8.8/3.5, Height 11 in, HP 1/2, 3/50, Ins. Class B, Length Less Shaft 9 3/4 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 8.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
