Shop DAYTON

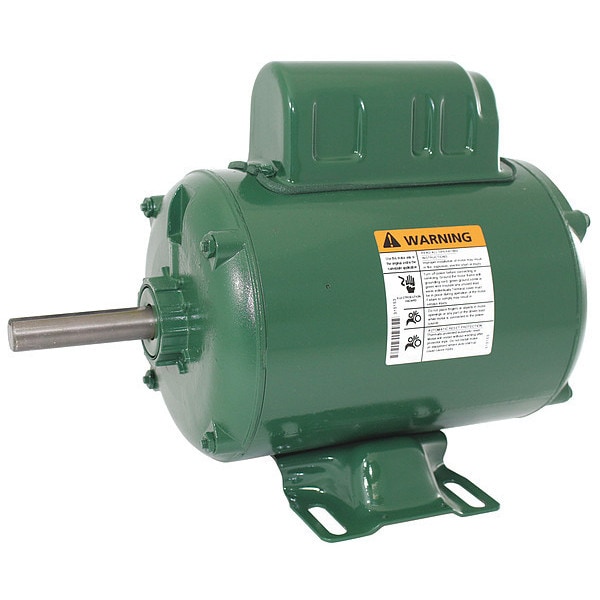

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 850 Nameplate RPM, 56Z Frame

  • Mfr # 1YBA6

  • Zoro # G1305053

product price:  $545.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
0-1,000
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YBA6
Zoro #
G1305053
UPC #
190735150276
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 in
Shaft Length
2 1/2 in
Overall Length
11 1/2 in
Shaft Dia.
5/8 in
Wire Rope Length
11 1/2 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
0-1,000
Voltage
115/230V AC
Frame
56Z
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
850 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Sub Application
Poultry/Livestock Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Item - Farm Duty Motors
Agricultural Fan Motor
Max. Ambient Temperature
40 Degrees C
Hz
60 Hz
Motor Bearings
Ball
Duty
Continuous Air Over
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame Material
Rolled steel
Ins. Class
B
Capacitor Required
Capacitor Included
Includes
Shaft Slinger, Gasketed Capacitor Cover and Wiring Compartment Cover
Finish
Gray
Nominal Efficiency
62.8 %
Full Load Amps
6.0/3.0 A
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous
Application
Farm Duty
Replacement For
6GC99
Drive Type
Direct Drive

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/3.0 A, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Gray
