  9. Brass 1/8 HP Centrifugal Pump 12V

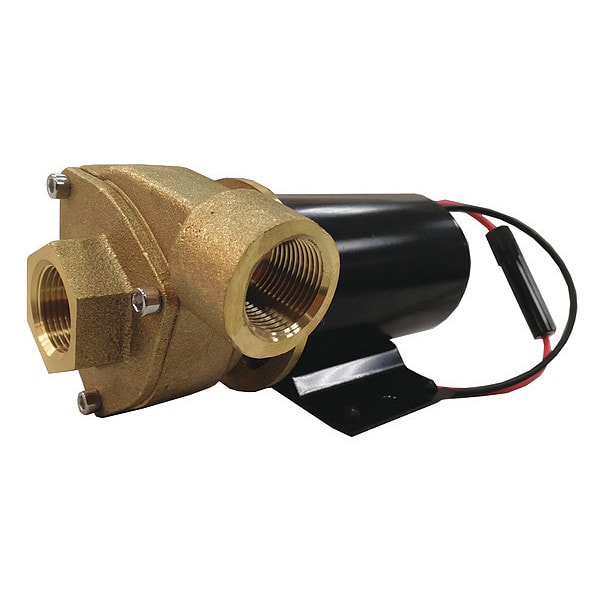

Dayton Brass 1/8 HP Centrifugal Pump 12V 5PXX4 - main

Brass 1/8 HP Centrifugal Pump 12V

  • Mfr # 5PXX4

  • Zoro # G2345926

product price: $314.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1/8 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Brass
Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5PXX4
Zoro #
G2345926
UPC #
190735350225
Country of Origin
China

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Length
7 1/8 in
Width
4 5/16 in
Manufacturers Warranty Length
1 yr
Height
3 3/8 in
Max. Dia. Solids
1/8 in
Overall Length
7.1 in
Overall Width
4.3 in
Overall Height
3.3 in
Compatible Intake Pipe Size
3/4 in
Solid Diameter (Maximum)
0.13 in
Compatible Discharge Pipe Size
3/4 in

Details

HP - Pumps
1/8 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Brass
Max. Pressure - Pumps
10 psi
Max. Head
17 ft
Housing Material
Brass
Impeller Material
Brass
Max. Case Pressure
200 psi
HP
1/8
Best Efficiency GPM @ Head
11 gpm @ 15 ft
GPM @ 7 Feet of Head
9.8
GPM of Water @ 10 Ft. of Head
8
Motor Enclosure
Totally Enclosed
Amps
8.5
Item
Marine Centrifugal Pump
Motor Type
DC
Max. Specific Gravity
1
Inlet
3/4" NPT
GPM of Water @ 5 Ft. of Head
11
Impeller Type
Semi Open
Voltage
12VDC
Min. GPM @ Head
3 @ 20 ft
GPM of Water @ 20 Ft. of Head
3
GPH of Water @ 5 Ft. of Head
660
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Bearing Type
Ball
Outlet
3/4" NPT
GPM @ 1 Ft. of Head
12.6
GPM of Water @ 15 Ft. of Head
4
Seal Material
Carbon, Ceramic, Viton
Max. Liquid Temp.
180 Degrees F
Port Rotation
180 Degree Increments
Includes
Manual
Motor RPM
5000
Max. Pressure
9.5 psi
Best Efficiency Range GPM @ Head
3 to 16 gpm @ 20 to 10 ft
Inlet Pressure
6.5 psi
GPM of Water @ 0 Ft. of Head
13
Max. GPM @ Head
21 @ 0 ft
Wetted Materials
Brass, Buna N, Carbon, Ceramic, Stainless Steel, Viton
Duty
Intermittent
Best Efficiency Flow
11 gpm
Maximum Media Temperature
180 Degrees F
Maximum Feet of Head
17 ft
Pump Housing Material
Brass
Shaft Material
430 Stainless Steel
Maximum RPM
5,000 RPM
Pumping Application
Condensate Return, Filtration, Fluid Transfer, Marine Applications and Irrigation
Specific Gravity (Maximum)
1
Shut Off Pressure (Maximum)
10 psi
Nameplate Voltage
12V DC
Flow Rate @ 15 ft of Head (Maximum)
4 gpm
Horsepower
1/8 hp
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Seal Type
Mechanical
Impeller Design
Semi-Open
Maximum Flow Rate
13 gpm
Submersible
No
Best Efficiency Head
15 ft
Minimum Media Temperature
40 Degrees F
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 1 ft of Head (Maximum)
12.6 gpm
Intake Type
NPT
Flow Rate @ 5 ft of Head (Maximum)
11 gpm
Wetted Material
Brass, Buna-N, Carbon, Ceramic, Stainless Steel, Viton
Flow Rate @ 10 ft of Head (Maximum)
8 gpm
Discharge Rotation
180 Degrees Increments
Duty Cycle
Intermittent
Discharge Type
NPT
Volute Material
Brass

Description

Marine Centrifugal Pump, Pump Housing Material Brass, Horsepower 1/8 hp, Nameplate Voltage 12V DC, Maximum Feet of Head 17 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed, Maximum Flow Rate 13 gpm, Flow Rate @ 5 ft of Head (Maximum) 11 gpm, Flow Rate @ 10 ft of Head (Maximum) 8 gpm, Flow Rate @ 15 ft of Head (Maximum) 4 gpm, Seal Material Carbon, Ceramic, Viton, Best Efficiency Head 15 ft
