Shop DAYTON

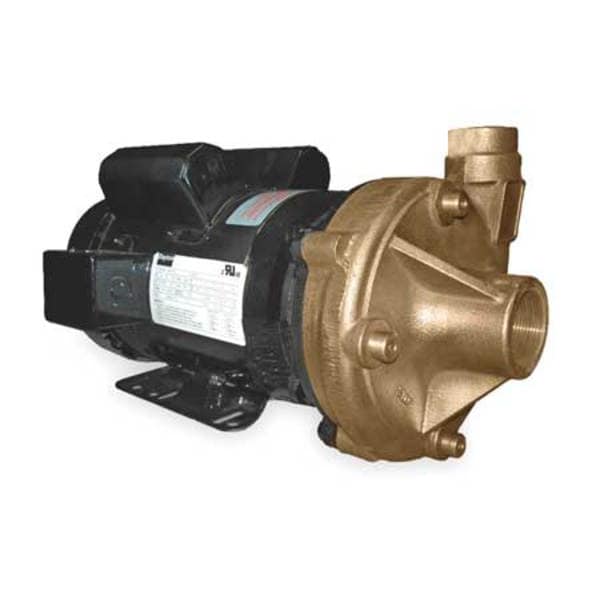

Bronze 3 HP Centrifugal Pump 230V

  • Mfr # 2ZXA7

  • Zoro # G1124724

product price:  $1,594.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
3 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Housing Material - Pumps
Bronze
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2ZXA7
Zoro #
G1124724
UPC #
190735242445
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/4 in NPT
Width
8 3/4 in
Max. Dia. Solids
5/16 in
Manufacturers Warranty Length
1 yr
Length
18 in
Height
9 in
Overall Length
18 in
Overall Height
8.9 in
Overall Width
8.8 in
Compatible Discharge Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.31 in
Compatible Intake Pipe Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Motor Frame Size
56J
Shaft Outer Diameter
5/8 in
Discharge Diameter
1 1/4 in
Impeller Diameter
143 mm
Inlet Diameter
1 1/2 in

Details

HP - Pumps
3 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Housing Material - Pumps
Bronze
Max. Head
131 ft
Max. Pressure - Pumps
56 psi
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
GPM of Water @ 30 Ft. of Head
98
Voltage
230VAC
Includes
Manual
GPM of Water @ 50 Ft. of Head
87
Seal Material
Viton
Item
Centrifugal Pump
GPM of Water @ 25 Ft. of Head
100
Motor Enclosure
Totally Enclosed Fan Cooled
Max. Case Pressure
200 psi
Amps
-/12.5
Inlet Pressure
200 psi
Frame
56J
GPM of Water @ 130 Ft. of Head
2
Item - Straight Centrifugal Pumps
Straight Centrifugal High Head Pump
Duty
Continuous
Motor Type
TEFC
Housing Material
Bronze
GPM of Water @ 60 Ft. of Head
79
Phase
Single
Wetted Materials
Bronze, Brass, Viton, Carbon, Ceramic, 316 SS
GPM of Water @ 40 Ft. of Head
92
GPM of Water @ 20 Ft. of Head
103
Port Rotation
4 Position Increments
Impeller Type
Closed
Max. Specific Gravity
1.0
GPM of Water @ 15 Ft. of Head
105
GPM of Water @ 120 Ft. of Head
17
GPM of Water @ 70 Ft. of Head
72
Bearing Type
Ball
GPM of Water @ 80 Ft. of Head
63
Max. Liquid Temp.
200 Degrees F
Motor RPM
3,450 RPM
Impeller Material
Stainless Steel
Hz
60
GPM of Water @ 10 Ft. of Head
107
GPM of Water @ 100 Ft. of Head
43
Best Efficiency GPM @ Head
95 @ 57 ft
Agency Compliance
UL Approval in Motor
Outlet
1-1/4"
HP
3
GPM of Water @ 110 Ft. of Head
32
GPM of Water @ 90 Ft. of Head
55
Inlet
1-1/2"
Max. Pressure
56 psi
Standards
UL Recognized Motor
Duty Cycle
Continuous
Minimum Media Temperature
40 Degrees F
Discharge Type
NPT
Horsepower
3 hp
Maximum Feet of Head
130 ft
Best Efficiency Head
57 ft
Maximum Media Temperature
200 Degrees F
Nameplate Voltage
230V AC
Flow Rate @ 30 ft of Head (Maximum)
98 gpm
Flow Rate @ 90 ft of Head (Maximum)
55 gpm
Shaft Material
Stainless Steel
Compatible with Media Type
Non-Flammable Liquids
Wetted Material
316 Stainless Steel, Brass, Bronze, Carbon, Ceramic, Viton
Motor Frame Designation
56J
Flow Rate @ 50 ft of Head (Maximum)
87 gpm
Flow Rate @ 10 ft of Head (Maximum)
107 gpm
Seal Type
Mechanical
Shut Off Pressure (Maximum)
56 psi
Flow Rate @ 100 ft of Head (Maximum)
43 gpm
Impeller Design
Closed
Flow Rate @ 120 ft of Head (Maximum)
17 gpm
Maximum RPM
3,450 RPM
Flow Rate @ 40 ft of Head (Maximum)
92 gpm
Intake Type
NPT
Pumping Application
Booster Services, Irrigation, Jockey Pump Services, Spraying Systems, Water Circulation
Frequency
60 Hz
For Use With Potable Systems
No
Flow Rate @ 70 ft of Head (Maximum)
72 gpm
Pump Housing Material
Bronze
Flow Rate @ 20 ft of Head (Maximum)
103 gpm
Feet of Head (Minimum)
10 ft
Best Efficiency Flow
95 gpm
Discharge Rotation
90 Degrees Increments
Specific Gravity (Maximum)
1
Volute Material
Bronze
Case Pressure - Maximum
100 psi
Mounting Orientation
Horizontal
Thermal Overload Protection
Yes
Motor Speed - Maximum
3,450 RPM
Feet of Head (Maximum)
130 ft
Discharge Position
Offset
Drive Coupling Type
No Coupling
Media Temperature - Maximum
200 Degrees F
Chemical Compatibility
Non-Flammable Liquids
Flow Rate @ 10 ft of Head - Maximum
107 gpm
Electrical Connection Type
Hardwired
Hazardous Location Class
Not Rated
Flow Rate (Maximum)
107 gpm
Ambient Temperature - Maximum
40 Degrees C
Media Temperature - Minimum
40 Degrees F
Full Load Current
12.5 A
Viscosity (Maximum)
100 SUS
Inlet Orientation
Side
Discharge Rotation Increments
0 Degrees
Discharge Orientation
Top
Number of Stages
1
Shaft Seal Type
Mechanical
Priming
Manual
Shut Off Pressure - Maximum
56 psi
Shaft Seal Material
FKM
Inlet Position
Center
Flow Rate (Minimum)
32 gpm

Description

Centrifugal Pump, Phase Single, Pump Housing Material Bronze, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) 92 gpm, Flow Rate @ 60 ft of Head (Maximum) 79 gpm, Flow Rate @ 80 ft of Head (Maximum) 63 gpm, Maximum Feet of Head 130 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 10 ft of Head (Maximum) 107 gpm
