Shop DAYTON

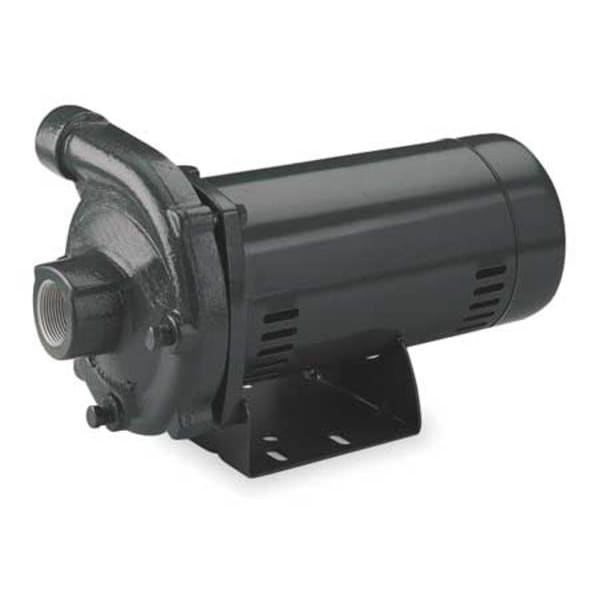

Cast Iron 2-1/2 HP Centrifugal Pump 230V

  • Mfr # 4RJ69

  • Zoro # G0720982

product price:  $2,216.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
2 1/2 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4RJ69
Zoro #
G0720982
UPC #
190735332313
Country of Origin
United States

Dimensions

Inlet Size - Pumps
2 in NPT
Outlet Size - Pumps
1-1/2 in NPT
Height
8 31/32 in
Width
8 5/8 in
Length
17 3/4 in
Overall Length
17.7 in
Overall Width
8.6 in
Overall Height
8.9 in
Compatible Intake Pipe Size
2 in
Compatible Discharge Pipe Size
1 1/2 in
Inlet Diameter
2 in
Motor Frame Size
56Y
Discharge Diameter
1 1/2 in

Details

HP - Pumps
2 1/2 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Housing Material - Pumps
Cast Iron
Max. Head
142 ft
Max. Pressure - Pumps
60 psi
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Port Rotation
90 Increments
Amps
11.7
Motor Type
K
GPM of Water @ 40 Ft. of Head
85
Frame
56Y
Motor RPM
3,450 RPM
GPM of Water @ 20 Ft. of Head
92
Max. Specific Gravity
1.0
GPM of Water @ 80 Ft. of Head
67
Phase
Single
GPM of Water @ 100 Ft. of Head
53
Inlet
2"
Best Efficiency GPM @ Head
75 @ 85 ft
Hz
60
Motor Enclosure
Totally Enclosed Fan Cooled
Impeller Material
Silicon Brass
GPM of Water @ 120 Ft. of Head
37
Max. Liquid Temp.
225 Degrees F
Best Efficiency Range GPM @ Head
55 to 65 gpm @ 115 to 75 ft
GPM of Water @ 60 Ft. of Head
77
Max. Pressure
60 psi
Impeller Type
Closed
Item
Centrifugal Pump
Item - Straight Centrifugal Pumps
Straight Centrifugal High Head Pump
Max. GPM @ Head
92 @ 20 ft
Seal Material
316 Stainless Steel, Buna-N, Carbon, Ceramic
Housing Material
Cast iron
Outlet
1-1/2"
Bearing Type
Sealed Ball
HP
2-1/2
Wetted Materials
Stainless Steel, Carbon, Cast Iron, Silicon Brass, Ceramic, Buna-N
Min. GPM @ Head
37 @ 120 ft
Voltage
230VAC
Max. Case Pressure
100 psi
Motor Frame Designation
56Y
Discharge Type
NPT
Nameplate Voltage
230V AC
Flow Rate @ 20 ft of Head (Maximum)
92 gpm
Maximum Feet of Head
142 ft
Maximum Flow Rate
92 gpm
Shut Off Pressure (Maximum)
60 psi
Duty Cycle
Continuous
Best Efficiency Head
58 ft
Seal Type
Type 21
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Silicon Brass, Stainless Steel
Maximum RPM
3,450 RPM
For Use With Potable Systems
No
Pump Housing Material
Cast Iron
Frequency
60 Hz
Flow Rate @ 80 ft of Head (Maximum)
67 gpm
Flow Rate @ 120 ft of Head (Maximum)
37 gpm
Flow Rate @ 60 ft of Head (Maximum)
77 gpm
Maximum Media Temperature
225 Degrees F
Flow Rate @ 40 ft of Head (Maximum)
85 gpm
Best Efficiency Flow
75 gpm
Intake Type
NPT
Specific Gravity (Maximum)
1
Discharge Rotation
90 Degrees Increments
Flow Rate @ 100 ft of Head (Maximum)
53 gpm
Priming
Self-Priming
Impeller Design
Closed
Horsepower
2 1/2 hp
Suction Lift (Maximum)
25 ft
Discharge Orientation
Side
Pumping Application
Irrigation
Motor Speed - Maximum
3,450 RPM
Thermal Overload Protection
Yes
Inlet Position
Center
Shaft Material
416 Stainless Steel
Number of Stages
1
Standards
CSA Certified, UL778
Shaft Seal Material
Buna-N/Carbon/Ceramic
Suction Lift - Maximum
25 ft
Drive Coupling Type
No Coupling
Case Pressure - Maximum
125 psi
Media Temperature - Minimum
32 Degrees F
Inlet Orientation
Side
Motor Design
Capacitor-Start/Run
Media Temperature - Maximum
225 Degrees F
Chemical Compatibility
Water
Mounting Orientation
Horizontal
Volute Material
Cast Iron
Discharge Position
Center
Discharge Rotation Increments
45 Degrees
Hazardous Location Class
Not Rated
Shut Off Pressure - Maximum
75 psi
Shaft Seal Type
Mechanical
Flow Rate (Maximum)
92 gpm
Pump Design
End Suction

Description

Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 2 1/2 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) 85 gpm, Flow Rate @ 60 ft of Head (Maximum) 77 gpm, Flow Rate @ 80 ft of Head (Maximum) 67 gpm, Maximum Feet of Head 142 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 92 gpm
