Shop DAYTON

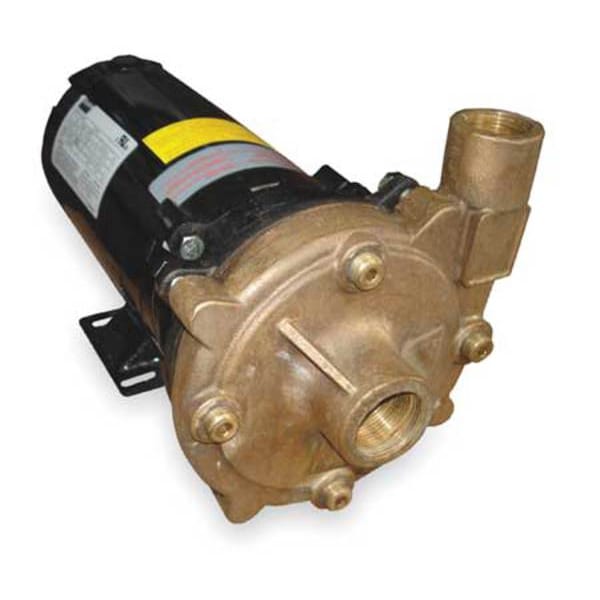

Bronze 1-1/2 HP Centrifugal Pump 208-230/460V

  • Mfr # 2ZXA4

  • Zoro # G2076331

product price:  $1,122.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Bronze
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2ZXA4
Zoro #
G2076331
UPC #
190735242414
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/4 in NPT
Max. Dia. Solids
5/16 in
Width
8 3/4 in
Length
15 3/4 in
Manufacturers Warranty Length
1 yr
Height
9 in
Overall Length
15.8 in
Overall Height
8.9 in
Overall Width
8.8 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.31 in
Compatible Intake Pipe Size
1 1/2 in
Compatible Discharge Pipe Size
1 1/4 in
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/2 in
Shaft Outer Diameter
5/8 in
Motor Frame Size
56J
Impeller Diameter
5 1/32 in
Wire Rope Length
15.8 in

Details

HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Bronze
Max. Head
110 ft
Max. Pressure - Pumps
47 psi
Motor Enclosure - Pumps
Open Dripproof
Outlet
1-1/4"
Phase
Three
Includes
Manual
GPM of Water @ 40 Ft. of Head
78
Agency Compliance
UL Approval in Motor
Best Efficiency GPM @ Head
54 @ 70 ft
Frame
56J
Item - Straight Centrifugal Pumps
Straight Centrifugal High Head Pump
Max. Liquid Temp.
200 Degrees F
Inlet Pressure
200 psi
Motor RPM
3,450 RPM
Seal Material
Viton
Impeller Material
Stainless Steel
Impeller Type
Closed
Amps
4.4-3.9/2.0
Hz
60
Max. Specific Gravity
1.0
Bearing Type
Ball
Wetted Materials
Bronze, Brass, Viton, Carbon, Ceramic, 316 SS
Housing Material
Bronze
GPM of Water @ 15 Ft. of Head
92
Motor Type
ODP
Motor Enclosure
Open Drip Proof
GPM of Water @ 90 Ft. of Head
32
GPM of Water @ 10 Ft. of Head
94
Voltage
208-230/460VAC
Max. Pressure
47 psi
Duty
Continuous
Max. Case Pressure
200 psi
GPM of Water @ 20 Ft. of Head
90
Port Rotation
4 Position Increments
HP
1-1/2
GPM of Water @ 80 Ft. of Head
43
GPM of Water @ 50 Ft. of Head
71
Item
Centrifugal Pump
GPM of Water @ 70 Ft. of Head
54
GPM of Water @ 25 Ft. of Head
87
GPM of Water @ 30 Ft. of Head
85
Inlet
1-1/2"
GPM of Water @ 60 Ft. of Head
62
Standards
UL Recognized Motor
Duty Cycle
Continuous
Feet of Head (Minimum)
10 ft
Intake Type
NPT
Flow Rate @ 50 ft of Head (Maximum)
71 gpm
Seal Type
Mechanical
Shaft Material
Stainless Steel
Discharge Type
NPT
Flow Rate @ 10 ft of Head (Maximum)
94 gpm
Flow Rate @ 30 ft of Head (Maximum)
85 gpm
Minimum Media Temperature
40 Degrees F
For Use With Potable Systems
No
Compatible with Media Type
Non-Flammable Liquids
Best Efficiency Flow
54 gpm
Wetted Material
316 Stainless Steel, Brass, Bronze, Carbon, Ceramic, Viton
Nameplate Voltage
230/460V AC
Horsepower
1 1/2 hp
Best Efficiency Head
70 ft
Motor Frame Designation
56J
Maximum Media Temperature
200 Degrees F
Shut Off Pressure (Maximum)
47 psi
Pumping Application
Booster Services, Irrigation, Jockey Pump Services, Spraying Systems, Water Circulation
Impeller Design
Closed
Frequency
60 Hz
Flow Rate @ 90 ft of Head (Maximum)
28 gpm
Maximum Feet of Head
110 ft
Maximum RPM
3,450 RPM
Flow Rate @ 40 ft of Head (Maximum)
78 gpm
Discharge Rotation
90 Degrees Increments
Flow Rate @ 70 ft of Head (Maximum)
54 gpm
Pump Housing Material
Bronze
Specific Gravity (Maximum)
1
Flow Rate @ 20 ft of Head (Maximum)
90 gpm
Volute Material
Bronze
Inlet Position
Center
Media Temperature - Maximum
200 Degrees F
Feet of Head (Maximum)
110 ft
Motor Design
Three-Phase
Flow Rate (Maximum)
94 gpm
Ambient Temperature - Maximum
40 Degrees C
Shaft Seal Type
Mechanical
Full Load Current
3.9/2.0 A
Flow Rate (Minimum)
28 gpm
Inlet Orientation
Side
Discharge Orientation
Top
Shut Off Pressure - Maximum
47 psi
Drive Coupling Type
No Coupling
Thermal Overload Protection
Yes
Media Temperature - Minimum
40 Degrees F
Case Pressure - Maximum
100 psi
Chemical Compatibility
Non-Flammable Liquids
Priming
Manual
Electrical Connection Type
Hardwired
Flow Rate @ 10 ft of Head - Maximum
94 gpm
Viscosity (Maximum)
100 SUS
Number of Stages
1
Shaft Seal Material
FKM
Motor Speed - Maximum
3,450 RPM
Mounting Orientation
Horizontal
Discharge Position
Offset
Discharge Rotation Increments
0 Degrees
Hazardous Location Class
Not Rated

Description

Centrifugal Pump, Phase Three, Pump Housing Material Bronze, Horsepower 1 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 78 gpm, Flow Rate @ 60 ft of Head (Maximum) 62 gpm, Flow Rate @ 80 ft of Head (Maximum) 43 gpm, Maximum Feet of Head 110 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 10 ft of Head (Maximum) 94 gpm
