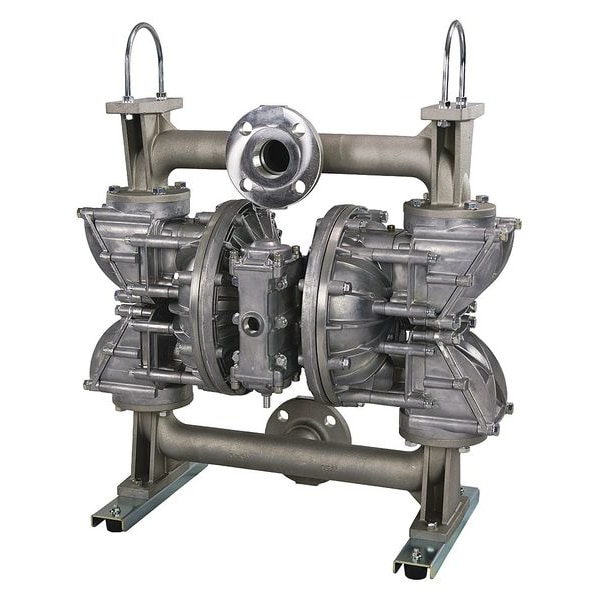

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 150 GPM

  • Mfr # 34TJ47
  • Zoro # G0046825
product price:
$
4,776.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
34TJ47
Zoro #
G0046825
UPC #
190735266403
Country of Origin
Japan

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
1 yr
Overall Length
14 in
Overall Height
32.5 in
Overall Width
28.3 in
Media Discharge Connection Size
2 in
Solid Diameter (Maximum)
2 in
Media Intake Connection Size
2 in
Wire Rope Length
14 in
Length
14 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
Air Intake Connection Type
NPT Threaded Flange
Check Seat Material
Buna-N
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
19 ft
Self-Priming Wet
28 ft
Inlet/Outlet
2 in
Flow Rate (Maximum)
150 gpm
Wetted Housing Material
Aluminum
Media Intake Connection Type
NPT Threaded Flange
Manifold Connection Type
NPT
Media Discharge Connection Type
NPT Threaded Flange
Fluid Chamber Assembly Type
Bolted
Wetted Body Material
Aluminum
Mounting Hardware Material
Steel
Priming
Self-Priming
Viscosity (Maximum)
50,000 cps
Media Intake Port Configuration
Center Horizontal
Flow Rate @ 100 psi
150 gpm
Media Discharge Port Configuration
Center Horizontal
Feet of Head (Maximum)
231 ft
Manifold Connection Standard
NPT
Media Intake Location
Bottom
Displacement Per Stroke
0.31 gal
For Use With Potable Systems
No
Diaphragm Base Material
Buna-N
Center Section Material
Aluminum
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Diesel, Motor Oil, Water
Material Conductivity
Conductive
Media Discharge Location
Top
Includes Clean In Place Technology
No Clean In Place Included
Duty Cycle
Continuous
Air Intake Pressure (Maximum)
100 psi
Includes Solenoid
No Solenoid Included
Media Temperature (Minimum)
10 Degrees F
Air Consumption (Maximum)
180 scfm
Includes
Ball Valve, Manual
Manifold Port Connection Type
Single Port
Diaphragm Reinforcement
Fabric Reinforced
Food Compatibility
Solid Food

Description

Double Diaphragm Pump, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT Threaded Flange, Check Seat Material Buna-N, Diaphragm Material Buna-N, Flow Rate (Maximum) 150 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT Threaded Flange, Media Intake Connection Size 2 in, Media Intake Connection Type NPT Threaded Flange, Media Temperature (Maximum) 180 Degrees F, Pump Assembly Type Bolt, Solid Diameter (Maximum) 2 in
