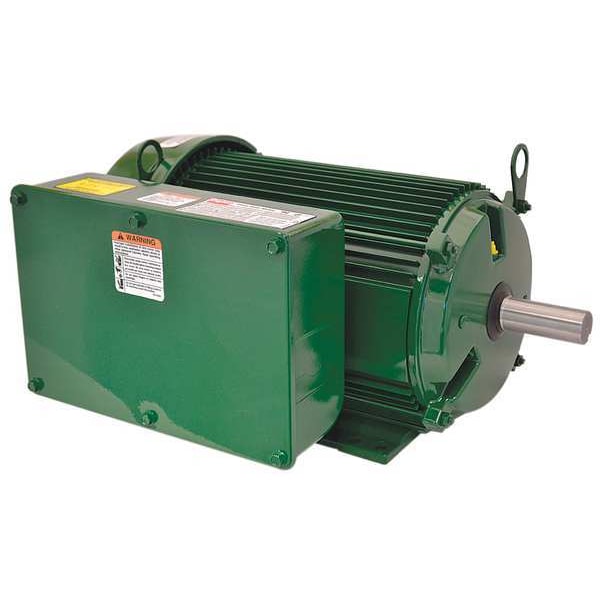

Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 3 HP, 230V AC, 1,760 Nameplate RPM

  • Mfr # 6K881

  • Zoro # G0453671

product price:
$
1,482.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K881
Zoro #
G0453671
UPC #
190735366639
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/4 in
Length Less Shaft
16 1/16 in
Shaft Dia.
1 1/8 in
Overall Length
18 13/16 in
Wire Rope Length
18 13/16 in
Length
18 13/16 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC
Frame
184T
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,760 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
Extra High Torque
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Bearings
Ball
Capacitor Required
Capacitor Included
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Max. Ambient Temperature
40 Degrees C
Finish
Green
Duty
Continuous
Item - Farm Duty Motors
Extra High Torque Farm Duty Motor
Ins. Class
F
Hz
60 Hz
Full Load Amps
17.0 A
Nominal Efficiency
76 %
Frame Material
Rolled steel
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 17.0 A, 184T Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
