Dayton

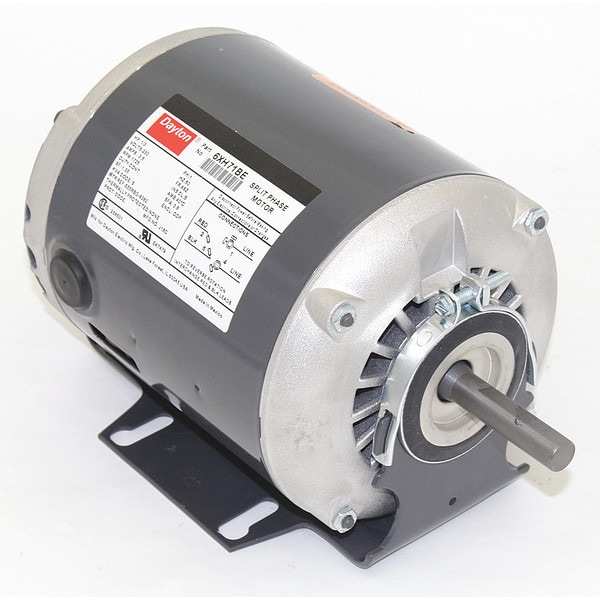

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 48

product price: $161.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
  • Motor Bearings Ball
  • Duty Continuous
  • Length Less Shaft 7 15/16 in
  • Motor Enclosure Design Open Dripproof
See all product information

Product Information

Dimensions

Length Less Shaft 7 15/16 in
Shaft Dia. 1/2 in
Shaft Length 1 7/8 in
Manufacturers Warranty Length 1 yr
Overall Length 9 13/16 in

Details

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Bearings Ball
Duty Continuous
Motor Enclosure Design Open Dripproof
Full Load Amps 3.5 A
Phase Single
Motor Shaft Design Flat
Ins. Class B
RPM Group 1701-1800
Nominal Efficiency 54.9 %
Motor Frame Material Rolled Steel
Motor Service Factor 1.35
Hz 60 Hz
Voltage 230V AC
Motor Shaft Rotation CW/CCW
Max. Ambient Temp. 104 Degrees F
HP 1/3
Item General Purpose Motor
Standards CSA (156060), UL (E47479)
Motor Design Split-Phase
Motor Efficiency Group Standard Efficient
Motor Mounting Type Cradle Base
Motor Thermal Protection None
Frame Material Rolled steel
Frame 48Z
No. of Speeds 1
Motor Application General Application
Nameplate RPM 1,725
RPM Range 1,701-1,800
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 3.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
