Shop All Split-Phase AC Motors
Dayton

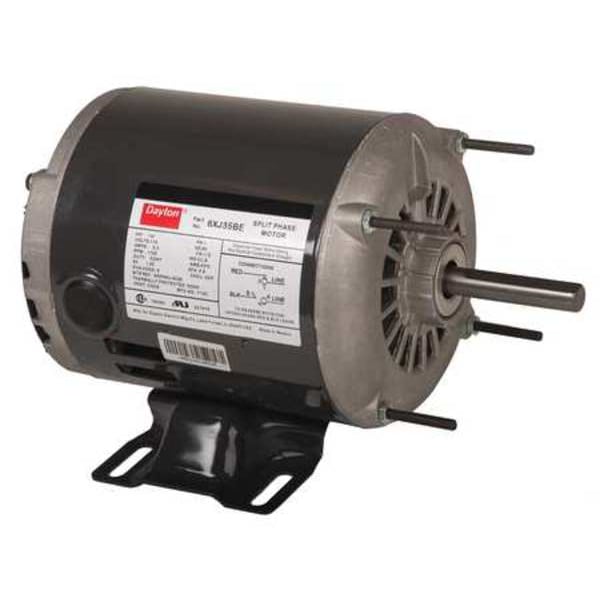

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 48Z

product price: $154.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shaft Dia. 1/2 in
  • Voltage 115V AC
  • HP 1/3
  • Motor Design Split-Phase
  • Duty Continuous
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Overall Length 9 3/4 in
Manufacturers Warranty Length 1 yr
Length Less Shaft 7 1/2 in
Shaft Length 2 1/4 in

Details

Voltage 115V AC
HP 1/3
Motor Design Split-Phase
Duty Continuous
Frame Material Rolled steel
Motor Bearings Ball
Standards CSA (258501), UL (E47479)
Max. Ambient Temp. 104 Degrees F
Nominal Efficiency 54.3 %
RPM Group 1701-1800
Motor Enclosure Design Open Dripproof
Motor Thermal Protection None
Ins. Class B
Frame 48Z
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Service Factor 1.35
Motor Application General Application
Motor Shaft Design Flat
Item General Purpose Motor
Full Load Amps 7.0 A
No. of Speeds 1
RPM Range 1,701-1,800
Hz 60 Hz
Nameplate RPM 1,725
Phase Single
Motor Mounting Type Rigid Base
Motor Efficiency Group Standard Efficient
Motor Shaft Rotation CW/CCW
Motor Frame Material Rolled Steel
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.0 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
