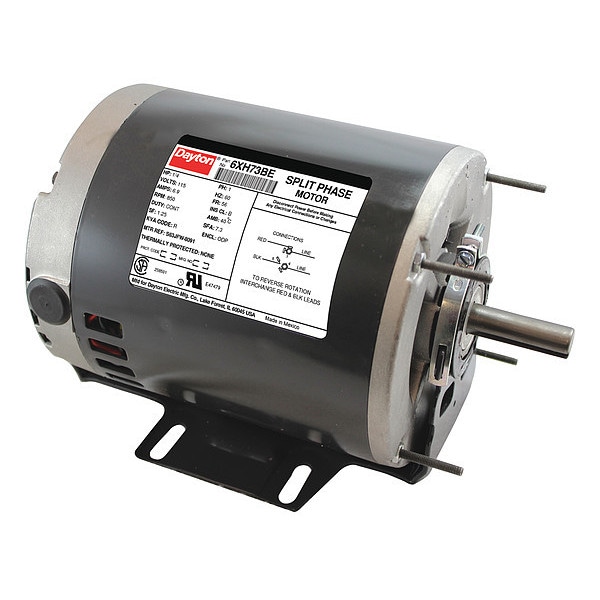

GP Mtr, Split Ph, ODP, 1/4 HP, 850 rpm, 56

DAYTON| Zoro #: G1234152| Mfr #: 6XH73

$342.30 /ea

This item ships free. Details.Standard ground shipping.
Details:
Ins. Class: B
Voltage: 115
Motor Mounting Type: Cradle Base
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1234152 Mfr #: 6XH73
Ins. Class: BVoltage: 115
Motor Mounting Type: Cradle BaseVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Frame: 56Phase: 1
Motor Thermal Protection: NoneRPM Group: Under 1000
Motor Application: General ApplicationHP: 1/4
Item: General Purpose MotorMotor Shaft Rotation: CW/CCW
Motor Shaft Design: KeyedManufacturers Warranty Length: 1 yr.
Nameplate RPM: 850Footnotes: 41
No. of Speeds: 1Frame Material: Rolled steel
Overall Length: 11-13/16"Duty: Continuous
Motor Service Factor: 1.25Motor Enclosure Design: Open Dripproof
Max. Ambient Temp.: 40 Degrees CRPM Range: 0-1000
Hz: 60Motor Bearings: Ball
Shaft Dia.: 5/8"Shaft Length: 1-7/8"
Nominal Efficiency: 52.0%Length Less Shaft: 9-15/16"
Motor Design: Split-PhaseMotor Efficiency Group:
Full Load Amps: 6.9Standards: UL (E47479), CSA (156060)
Country of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Open Dripproof, 1/4 HP, Nameplate RPM 850, 56 Frame, Voltage 115, 60 Hz, 1 Phase, 6.9 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.25 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-13/16 In., Motor Shaft Design Keyed
