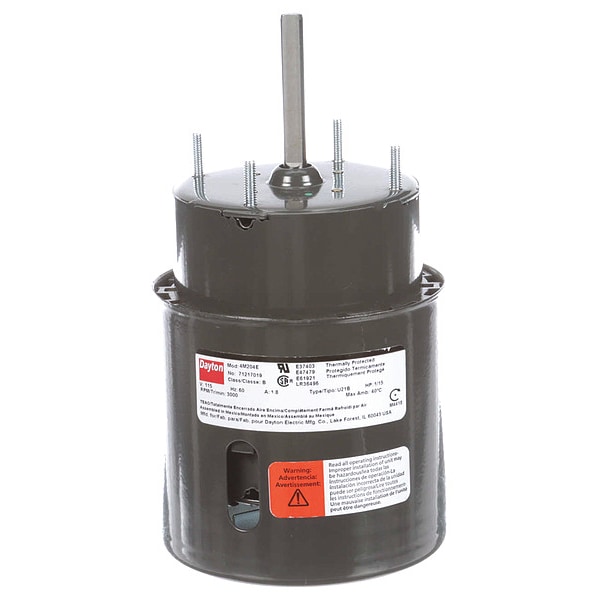

Dayton HVAC Motor, 1/15 HP, 3000 rpm, 115V, 3.3 71217019M - main

HVAC Motor, 1/15 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71217019M

  • Zoro # G2229586

product price: $91.89
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/15
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71217019M
Zoro #
G2229586
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/4 in
Cord Length
12 in
Shaft Dia.
5/16 in
Body Dia.
4 in
Length Less Shaft
5 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/15
RPM Range
1,801-3,000
Motor Bearings
Sleeve
Phase
Single
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Item
HVAC Motor
Motor Service Factor
1
Mounting Pattern
2 x 2
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Ins. Class
B
Motor Application
HVAC/R
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty
Continuous
Motor Shaft Design
Flat
Motor Mounting Type
Ring/Stud
Number of Shafts
1
Motor Design
Shaded Pole
Motor Shaft Rotation
CWSE
Full Load Amps
1.8 A
Motor Thermal Protection
Auto
Motor Sub Application
Direct Drive Fan/Blower
Frame
3.3
Stud/Base Mtg. Pattern
2 in x 2 in
Mounting Stud Location
4/Shaft End
Standards
CSA Certified, UL Recognized (E37403)
Capacitor Required
No
Duty Cycle
Continuous
Usable @ 208V
No
Mounting Stud Pattern
2 in x 2 in
Usable @ 200V
No
Motor Mounting Position
All Angle
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.8 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
