  11. HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3

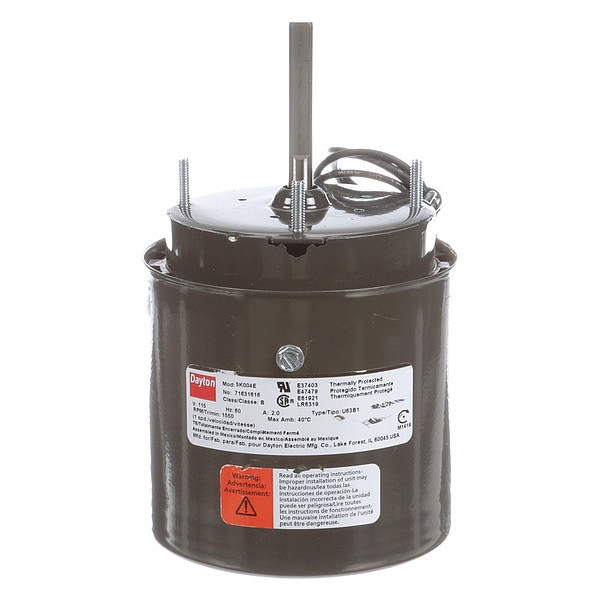

Dayton HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3 71631616M - main

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71631616M

  • Zoro # G2375965

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
71631616M
Zoro #
G2375965
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
4 in
Shaft Dia.
5/16 in
Shaft Length
2 1/4 in
Length Less Shaft
4 1/4 in
Cord Length
12 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Motor Mounting Type
Ring/Stud
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Thermal Protection
Auto
Item
HVAC Motor
Duty
Continuous
Motor Design
Shaded Pole
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Full Load Amps
1.8 A
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Motor Bearings
Ball
Mounting Pattern
2 x 2
Number of Shafts
1
Frame
3.3
Phase
Single
Motor Sub Application
Direct Drive Fan/Blower
Ins. Class
B
Mounting Stud Location
4/Shaft End
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design
Flat
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Shaft Rotation
CWSE
Hz
60 Hz
Capacitor Required
No
Mounting Stud Pattern
2 in x 2 in
Duty Cycle
Continuous
Usable @ 208V
No
Motor Mounting Position
All Angle
Usable @ 200V
No
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.8 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
