  11. HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3

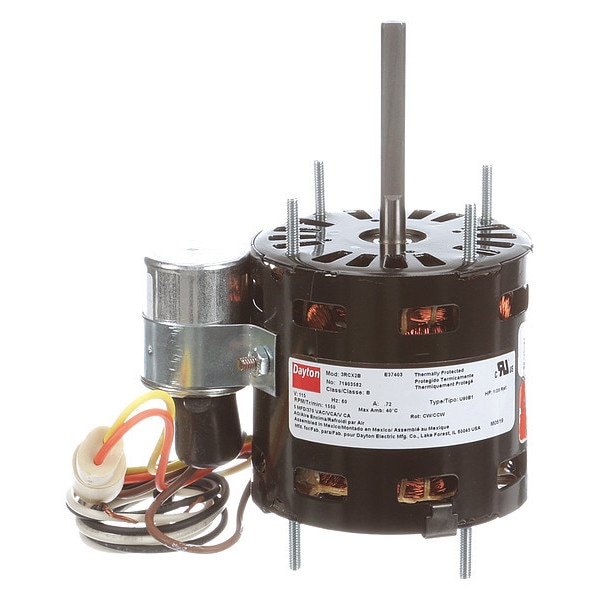

Dayton HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3 71903582M - main

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71903582M

  • Zoro # G1269125

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71903582M
Zoro #
G1269125
UPC #
00190735293171
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Dia.
5/16 in
Length Less Shaft
3 11/16 in
Cord Length
20 in
Shaft Length
2 1/2 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Standards
CSA Certified (244617), UL Recognized (E37403)
Max. Ambient Temp.
40 Degrees C
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Design
Permanent Split Capacitor
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Hz
60 Hz
No. of Speeds
1
Frame
3.3
Ins. Class
B
Phase
Single
Mounting Stud Location
4/Both Ends
Item
HVAC Motor
Capacitor Required
Included
Application
Replaces 1/20 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Motor Service Factor
1
Full Load Amps
0.8 A
Motor Mounting Type
Ring/Stud
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Flat
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts
1
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Thermal Protection
Auto
Mounting Pattern
2 x 2
Includes
5 MFD 370VAC Capacitor
Mounting Stud Pattern
2 in x 2 in
Duty Cycle
Continuous
Usable @ 208V
No
Motor Mounting Position
All Angle
Usable @ 200V
No
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.8 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
