  11. HVAC Motor, 1/30 HP, 3000 rpm, 230V, 3.3

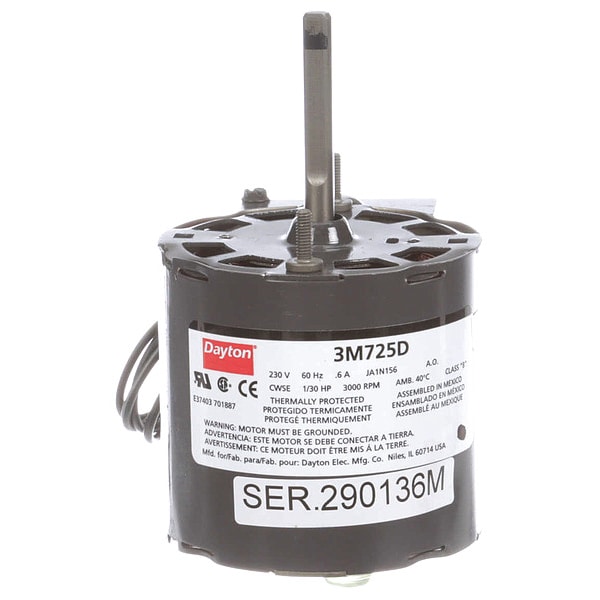

Dayton HVAC Motor, 1/30 HP, 3000 rpm, 230V, 3.3 71214610M - main

HVAC Motor, 1/30 HP, 3000 rpm, 230V, 3.3

  • Mfr # 71214610M

  • Zoro # G0847357

product price: $67.39
/ea

Key Features

Voltage
230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/30
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71214610M
Zoro #
G0847357
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/4 in
Shaft Dia.
5/16 in
Cord Length
6 in
Length Less Shaft
3 1/8 in
Body Dia.
3 5/16 in

Details

Voltage
230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/30
RPM Range
1,801-3,000
Motor Mounting Type
Ring/Stud
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Full Load Amps
0.6 A
Motor Shaft Rotation
CWSE
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Duty
Continuous
Motor Bearings
Sleeve
Ins. Class
B
Standards
CSA Certified, UL Recognized (E37403)
No. of Speeds
1
Hz
60 Hz
Frame
3.3
Mounting Pattern
2-7/8
Motor Design
Shaded Pole
Mounting Stud Location
2/Shaft End
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Phase
Single
Includes
5 cu. in. Junction Box
Motor Sub Application
Direct Drive Fan/Blower
Item
HVAC Motor
Number of Shafts
1
Motor Application
HVAC/R
Motor Service Factor
1
Footnotes
51
Motor Shaft Design
Flat
Stud/Base Mtg. Pattern
2-7/8 in
Capacitor Required
No
Motor Mounting Position
All Angle
Usable @ 208V
No
Usable @ 200V
No
Mounting Stud Pattern
2 7/8 in
Duty Cycle
Continuous
Mounting
Stud
Type
OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
