Dayton

Motor, 1/2hp, D/D Blower

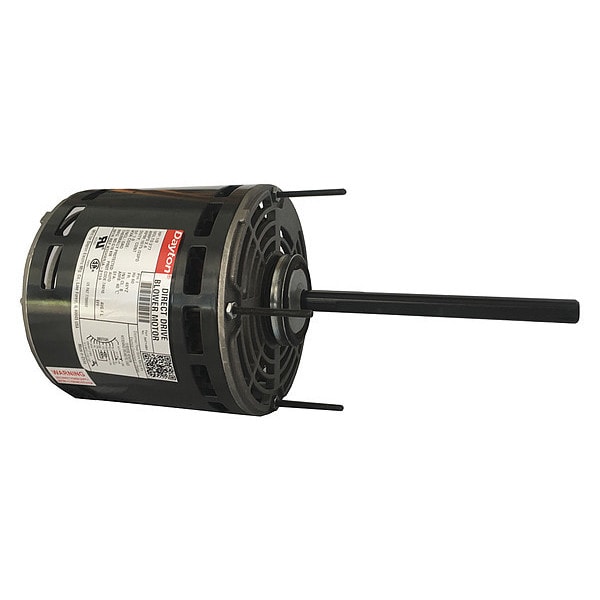

Dayton Motor, 1/2hp, D/D Blower 3M714
Tap to zoom
Hover or click to zoom
$154.69
  • Application: Blowers, Fans and Air Circulators
  • Motor Shaft Rotation: CW/CCW
  • Full Load Amps: 2.6
See full product details
This item ships free.

Total: $154.69

Dayton #3M714 Specifications

  • Application: Blowers, Fans and Air Circulators
  • Motor Shaft Rotation: CW/CCW
  • Full Load Amps: 2.6
  • Motor Mounting Type: Ring/Stud
  • Phase: Single
  • Motor Thermal Protection: Auto
  • Duty: Continuous
  • RPM Range: 1,001-1,100
  • Voltage Compatibility: 208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
  • Body Dia.: 5 5/8 in
  • Motor Mounting Position: All Angle
  • Motor Service Factor: 1
  • Item: Direct Drive Blower Motor
  • Motor Application: HVAC/R
  • Resilient Ring Dia.: 2 1/4 in
  • Length Less Shaft: 6 13/32 in
  • No. of Speeds: 3
  • Shaft Length: 6 in
  • Motor Enclosure Design: Open Air-Over
  • Shaft Dia.: 1/2 in
  • Bolt Circle Dia.: 5 1/8 in
  • Nameplate RPM: 1,075
  • HP: 1/2
  • Max. Ambient Temp.: 40 Degrees C
  • Voltage: 277V AC
  • Capacitor Required: 2MDV5
  • Hz: 60 Hz
  • Motor Bearings: Sleeve
  • Frame: 48YZ
  • Mounting Stud Pattern: 3 5/8 in x 3 5/8 in
  • Motor Sub Application: Direct Drive Fan/Blower
  • Ins. Class: B
  • Overall Length: 12 13/32 in
  • Includes: Split Rings to Increase Ring Diameter to 2 1/2 in
  • Motor Shaft Design: Double-Flat
  • Ring to Ring Center: 6 in
  • Standards: CSA Certified, UL Recognized
  • Motor Design: Permanent Split Capacitor
  • Stud Size: 8-32 NC 2A Thread x 1 5/8 in
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 277V AC, Full Load Amps 2.6, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Stud, Motor Mounting Position All Angle
