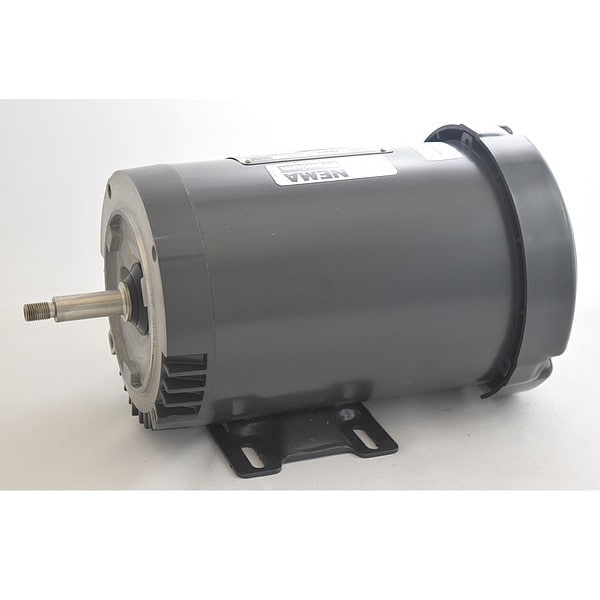

Dayton Motor, 3-Ph, 2 HP, 208-230/460V, 56J 21XU04A - main

Motor, 3-Ph, 2 HP, 208-230/460V, 56J

  • Mfr # 21XU04A

  • Zoro # G5800636

product price:  $913.99
/ea
Free Shipping & Returns

Key Features

Ins. Class
F
Motor Mounting Type
Face/Base
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Thermal Protection
None
Motor Sub Application
Jet Pump
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
21XU04A
Zoro #
G5800636
UPC #
00194484253523
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6.6 in
Overall Length
13 9/16 in
Shaft Length
2 5/8 in
Bolt Circle Diameter
3 1/2 in
Body Diameter
6.6 in
Shaft Diameter
5/8 in
Length Less Shaft
11 in
Height
13 9/16 in
Frame Size
56J

Details

Ins. Class
F
Motor Mounting Type
Face/Base
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Thermal Protection
None
Motor Sub Application
Jet Pump
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Duty
Continuous
Item
Jet Pump Motor
Motor Mounting Position
Horizontal, Vertical Shaft Down
Nameplate RPM
3,500
Max. Ambient Temp.
50 Degrees C
HP
2
Shaft Material
Stainless Steel
Includes
Shaft Slinger
Phase
Three
Frame
56J
Full Load Amps
5.4-4.9/2.4
Motor Shaft Design
Threaded
Motor Application
Pump
Nominal Efficiency
86.5 %
Motor Bearings
Ball
RPM Range
3,001-3,600
Motor Design
Three-Phase
Motor Shaft Rotation
CW/CCW
Hz
60/50
Voltage
208-230/460V AC
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Service Factor
1.15
Duty Cycle
Continuous
Shaft Type
Threaded 7/16-20 UNF-2A RH Thread
Full Load Current @ 50 Hz
3.0/6.0
Usable @ 208V
Usable at 208V
Application
Pump
Efficiency Rating
Premium Efficiency (IE3)
Nameplate Horsepower @ 50 Hz
2 hp
Series
M
Nameplate RPM @ 50 Hz
2860 RPM
Product Type
Pump Motor
NEMA Design Class
B
Frame Finish
Enamel-Coated
Number of Speeds
1
Mounting Position
Horizontal
Usable @ 200V
Usable at 200V
Frequency
60/50 Hz
Manufacturers Warranty
1 yr
Number of Wires
9
Bearing Type
Ball
Sub Application
Jet Pump
Ambient Temperature - Maximum
50 Degrees C
Insulation Class
F
Shaft Design
Threaded
Includes Diaphragm
Diaphragm Not Included
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
190/380V AC
Requires Overload Relay
No
Nameplate Service Factor @ 60 Hz
1.15
Conduit Box Location
Exterior
Service Factor Current
2.8 A / 5.6 A
Starting Method
Across-the-Line
Weight
30 lb
Nameplate Service Factor @ 50 Hz
1
Frame Material
Stainless Steel
Full Load Current @ 60 Hz
5.4-4.9/2.4 A

Description

Jet Pump Motor, Body Dia. 6.6 in, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 5.4-4.9/2.4, HP 2, Includes Shaft Slinger, Ins. Class F, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Enclosure Design Totally Enclosed Fan-Cooled
