Shop DAYTON

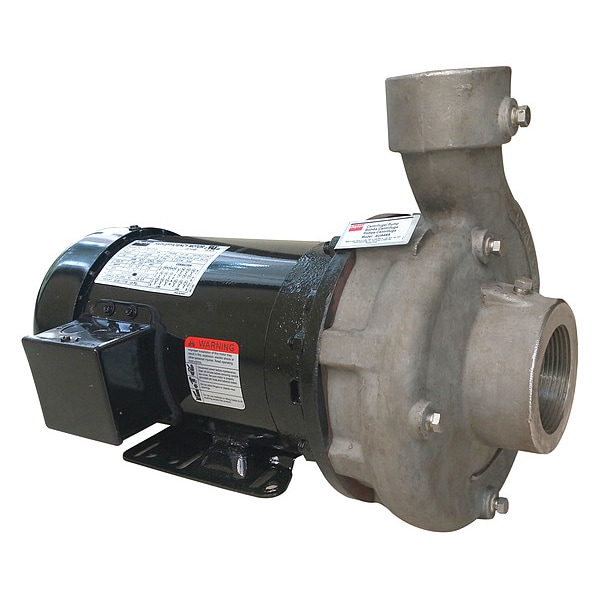

Straight Centrifugal High Head Pump, 2 HP

  • Mfr # 55JJ67

  • Zoro # G3721174

product price:  $1,698.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Inlet Size - Pumps
2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ67
Zoro #
G3721174
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2 in NPT
Outlet Size - Pumps
1-1/2 in NPT
Height
12 1/4 in
Compatible Intake Pipe Size
2 in
Overall Height
12.2 in
Compatible Discharge Pipe Size
1 1/2 in
Overall Width
11.5 in
Impeller Diameter
108 mm
Discharge Diameter
1 1/2 in
Overall Length
18.5 in
Shaft Outer Diameter
7/8 in
Solid Diameter (Maximum)
0.13 in
Inlet Diameter
2 in
Motor Frame Size
145JM
Manufacturer Warranty Length
1 yr

Details

HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Max. Head
63 ft
Max. Pressure - Pumps
27 psi
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Phase
Three
Best Efficiency Range GPM @ Head
83 to 120 gpm @ 53 to 41 ft
Frame
145JM
Item
Centrifugal Pump
Item - Straight Centrifugal Pumps
Straight Centrifugal High Head Pump
Amps
6.2/3.1
Motor Enclosure
Totally Enclosed Fan Cooled
Best Efficiency Head
53 ft
Horsepower
2 hp
Nameplate Voltage
230/460V AC
Pump Housing Material
Stainless Steel
Flow Rate @ 20 ft of Head (Maximum)
163 gpm
Shut Off Pressure (Maximum)
27 psi
Best Efficiency Flow
120 gpm
Maximum Feet of Head
50 ft
Discharge Type
NPT
Flow Rate @ 30 ft of Head (Maximum)
143 gpm
Flow Rate @ 50 ft of Head (Maximum)
93 gpm
Flow Rate @ 40 ft of Head (Maximum)
122 gpm
For Use With Potable Systems
No
Intake Type
NPT
Specific Gravity (Maximum)
1
Mounting Orientation
Horizontal
Motor Speed - Maximum
3,450 RPM
Motor Design
Three-Phase
Service Factor
1.25
Standards
UL Recognized Motor
Drive Coupling Type
No Coupling
Shaft Seal Type
Mechanical
Hazardous Location Class
Not Rated
Inlet Orientation
Side
Media Temperature - Minimum
40 Degrees F
Full Load Current
5.2/2.6 A
Priming
Manual
Case Pressure - Maximum
100 psi
Frequency
60 Hz
Impeller Material
Stainless Steel
Discharge Orientation
Top
Duty Cycle
Continuous
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Flow Rate (Minimum)
93 gpm
Flow Rate (Maximum)
163 gpm
Feet of Head (Maximum)
50 ft
Ambient Temperature - Maximum
40 Degrees C
Chemical Compatibility
Non-Flammable Liquids
Media Temperature - Maximum
200 Degrees F
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Discharge Position
Center
Shaft Material
Stainless Steel
Discharge Rotation Increments
0 Degrees
Inlet Position
Center
Number of Stages
1
Feet of Head (Minimum)
20 ft
Shut Off Pressure - Maximum
27 psi
Electrical Connection Type
Hardwired
Thermal Overload Protection
Yes
Shaft Seal Material
Carbon/Ceramic/FKM
Volute Material
316 Stainless Steel
Bearing Type
Ball
Viscosity (Maximum)
100 SUS
Includes
Manual

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 2 hp, Nameplate Voltage 208-240/480V AC, Flow Rate @ 40 ft of Head (Maximum) 122 gpm, Maximum Feet of Head 50 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 20 ft of Head (Maximum) 163 gpm, Flow Rate @ 30 ft of Head (Maximum) 143 gpm, Flow Rate @ 50 ft of Head (Maximum) 93 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
