  11. Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm

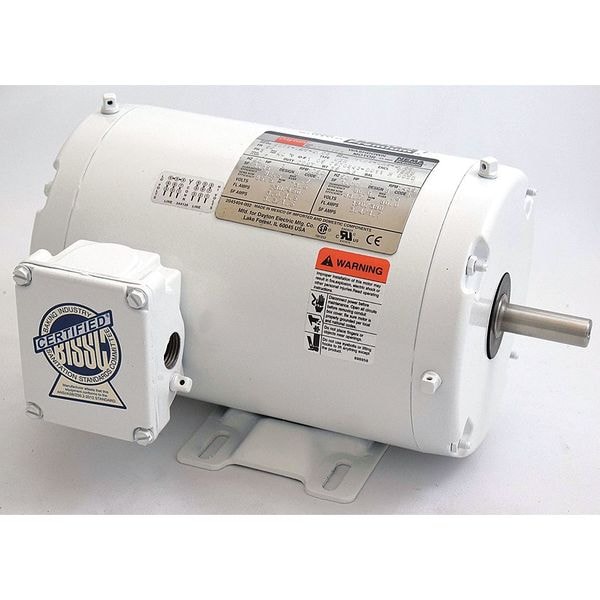

Dayton Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm 1TTC1 - main

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm

  • Mfr # 1TTC1

  • Zoro # G2151292

product price: $877.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TTC1
Zoro #
G2151292
UPC #
190735147863
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Overall Length
11 13/16 in
Body Dia.
6.5 in
Shaft Dia.
5/8 in
Length Less Shaft
9 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nominal Efficiency
85.5 %
Full Load Amps
3.0/1.5 A
Motor Service Factor
1.15
Duty
Continuous
Shaft Material
303
Hz
60/50 Hz
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Bearings
Ball
Drain Plugs
(2) in Conduit Box, (4) Each End
Endshields
Cast Aluminum
Motor Mounting Type
Rigid Base
Motor Application
General Purpose
Max. Ambient Temp.
40 Degrees C
CC Number
CC030A
Frame Material
Epoxy Coated
Includes
Side-Mounted Conduit Box
Motor Shaft Design
Keyed
Nameplate RPM
1,750 RPM
Inverter Rated
Inverter Rated
Conduit Box
Cast Oversized Gasketed
NEMA Design
B
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Duty Cycle
Continuous
No. of Speeds
1
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
