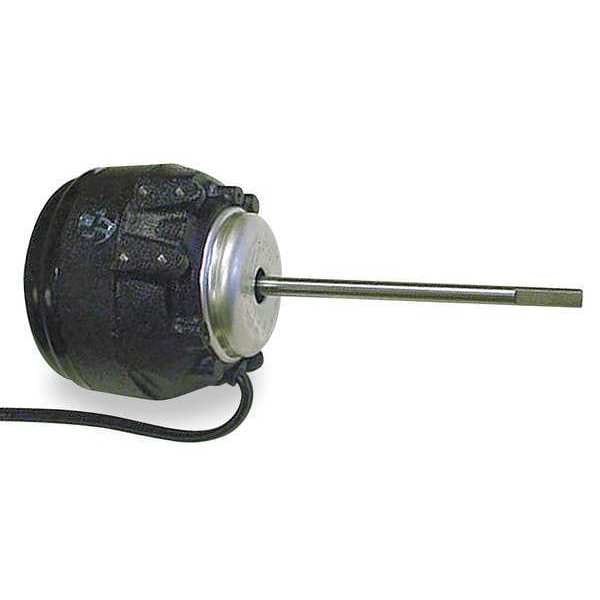

Unit Bearing Motor, 1/50 hp

  • Mfr # ESP-L15EMJR1B2

  • Zoro # G1816385

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
15 W
HP
1/50
RPM Range
1,401-1,500
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ESP-L15EMJR1B2
Zoro #
G1816385
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
3 9/16 in
Shaft Length
5 in
Bolt Circle Dia.
3 1/4 in
Shaft Dia.
5/16 in
Cord Length
22 in
Body Dia.
3 7/8 in
Shaft Diameter
5/16 in
Overall Length
10 1/2 in
Bolt Circle Diameter
3 1/4 in
Body Diameter
3.9 in
Frame Size
Non-Standard
Wire Rope Length
10 1/2 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
15 W
HP
1/50
RPM Range
1,401-1,500
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CCWSE
Nameplate RPM
1,500
Frame
Non-Standard
Motor Mounting Position
All Angle
Motor Mounting Type
Rear/Double Foot
Motor Shaft Design
Flat
Motor Frame Material
Cast Iron
Ins. Class
A
Frame Material
Cast Iron
Plug Type
Round 2 Pin
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Item
Unit Bearing Motor
Hz
60/50 Hz
Motor Design
Shaded Pole
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Full Load Amps
0.60 A
Motor Bearings
Unit
Includes
#8-36 Mounting Screws
Features
Beverage Dispensers
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Wattage
15 W
Sub Application
Unit Bearing
Product Type
Unit Bearing Motor
Insulation Class
A
Bearing Type
Unit
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Number of Speeds
1
Drive Type
Direct Drive
Mounting Position
Horizontal/Vertical Shaft Down
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
0.60 A
Frequency
60/50 Hz

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/50 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, Non-Standard Frame, Output Watts 15 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rear/Double Foot, Motor Frame Material Cast Iron
