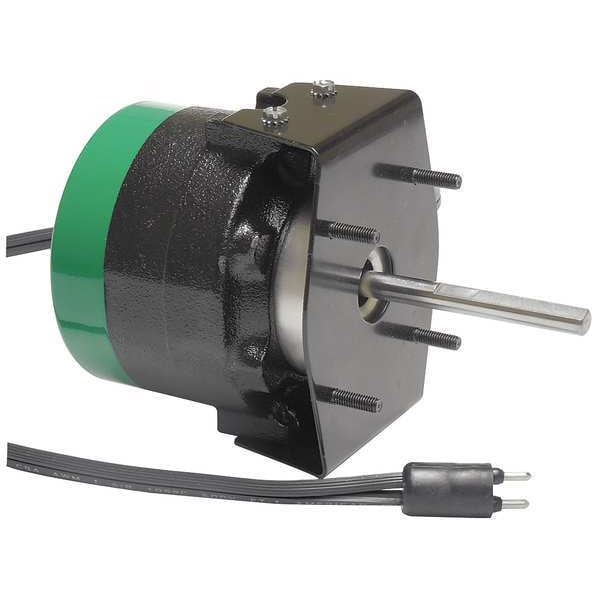

Unit Bearing Motor, 1/15 hp
- Mfr # UTBEC1551BJ1 IND BOX
- Zoro # G5242605
product price:Â
$
125.99
/ea
Free Shipping & Returns
Key Features
Motor Sub Application
Refrigerator/Freezer
Output Watts
50 W
HP
1/15
RPM Range
1,501-1,600
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UTBEC1551BJ1 IND BOX
- Zoro #
- G5242605
- UPC #
- 095801779163
- Country of Origin
- United States
Dimensions
- Overall Length
- 3 1/8 in
- Shaft Length
- 2 5/8 in
- Ring Dia.
- 2 81/100 in
- Length Less Shaft
- 3 1/2 in
- Shaft Dia.
- 5/16 in
- Bolt Circle Dia.
- 3 5/16 in
- Cord Length
- 22 1/2 in
- Body Dia.
- 3 7/16 in
- Shaft Diameter
- 5/16 in
- Bolt Circle Diameter
- 3 5/16 in
- Body Diameter
- 3.4 in
- Frame Size
- Non-Standard
- Wire Rope Length
- 3 1/8 in
- Length
- 3 1/8 in
Description
Unit Bearing Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Cast Iron, Motor Mounting Position Horizontal or Vertical Shaft Down
