Shop LINCOLN ELECTRIC

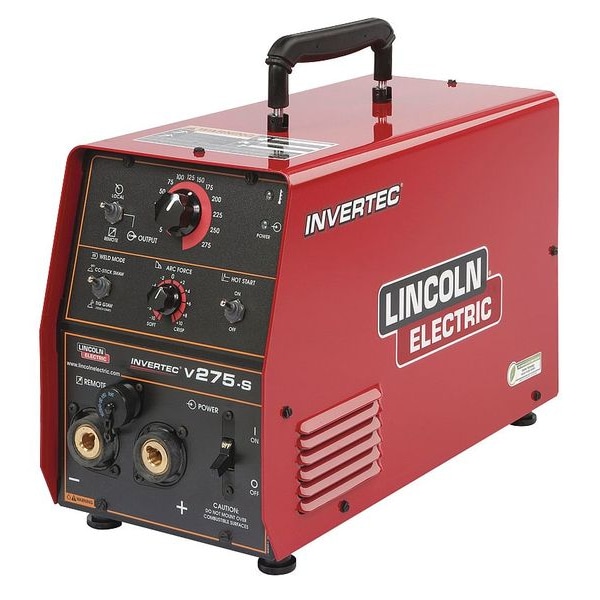

(K4868-2) Invertec V276 Stick Welder

  • Mfr # K4868-2

  • Zoro # G7605981

product price:
$
5,755.99
/ea
Free Shipping & Returns

Key Features

Series
Invertec V276
Phase
Single/Three
Input Voltage
208/230/380/415/460/575V AC
Function
Gouging, Stick, TIG
Rated Output
275A/31V/35%, 250A/30V/60%, 200A/28V/100%
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
K4868-2
Zoro #
G7605981
UPC #
015082785127
Country of Origin
United States
Item
Stick Welder
Series
Invertec V276
Phase
Single/Three
Input Voltage
208/230/380/415/460/575V AC
Function
Gouging, Stick, TIG
Rated Output
275A/31V/35%, 250A/30V/60%, 200A/28V/100%
Includes
(2) Twist Mate Cable Plugs (K852-70)
Features
Designed For Outdoor Use, Weather Resistant Features
Standards
NEC
Hz
50/60
Application
Construction Sites, Fabrication Shops
Input (Amps)
208/230/460/575
Amps AC
5-275 A DC
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Plug Type
Bare Leads
Input Frequency
50/60 Hz
TIG Welding Maximum Output Current
275 A
Stick Welding Output @ Duty Cycle
200 A @ 28 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 250 A @ 30 V, 60% (1-Phase), 250 A @ 30 V, 60% (3-Phase), 275 A @ 29-31 V, 35% (1-Phase), 275 A @ 31 V, 35% (3-Phase)
Power Cord Included
Yes
TIG Arc Start Feature
Lift Arc Start
Stick Welding Minimum Output Current
5A
Color
Red
Effective Input Current
27/25/13/11 A Three-Phase), 34/33/17/14 A (Three-Phase), 38/37/19/16 A (Three-Phase), 49/48/26/21 A (Three-Phase), 63/62/33/27 A (Three-Phase), 68/67/38/31 A (Three-Phase)
TIG Welding Minimum Output Current
5 A
Polarity
DC
Remote Connection Type
6-Pin (Lincoln)
Cable Connection Type
Dinse-Style
Stick Welding Maximum Output Current
275 A
TIG Welding Output @ Duty Cycle
200 A @ 28 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 250 A @ 30 V, 60% (1-Phase), 250 A @ 30 V, 60% (3-Phase), 275 A @ 29-31 V, 35% (1-Phase), 275 A @ 31 V, 35% (3-Phase)
Weight
54.5 lb
Welding Mode
CC
Model
K2269-1
Welding Power Source Type
CC
Amperage TIG - Minimum
5 A
Amperage TIG - Maximum
275 A
Rated Output @ Duty Cycle (Stick)
200 A @ 28 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 250 A @ 30 V, 60% (1-Phase), 250 A @ 30 V, 60% (3-Phase), 275 A @ 29-31 V, 35% (1-Phase), 275 A @ 31 V, 35% (3-Phase)
Amperage Stick - Minimum
5 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
200 A @ 28 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 250 A @ 30 V, 60% (1-Phase), 250 A @ 30 V, 60% (3-Phase), 275 A @ 29-31 V, 35% (1-Phase), 275 A @ 31 V, 35% (3-Phase)
Amperage Stick - Maximum
275 A

Description

The LINCOLN ELECTRIC K4868-2 Invertec V276 Stick Welder is a multiprocess inverter welder designed for stick (SMAW), TIG (GTAW), and air carbon arc gouging (CAC-A) operations. It operates on single- or three-phase input power, offering flexible voltage compatibility from 208V to 575V AC at 50/60 Hz. The welder provides up to 275 amps of output and supports both lift-arc TIG starts and constant-current welding modes. Designed with a weather-resistant housing for outdoor or shop use, the unit includes two Twist Mate cable plugs and a 10-foot power cord.

Key Features:

  • Series: Invertec V276
  • Processes Supported: Stick, TIG, and air carbon arc gouging
  • Input Voltage: 208V, 230V, 380V, 415V, 460V, or 575V AC
  • Phase: Single-/Three-phase operation
  • Rated Output: 275A @ 31V (35%), 250A @ 30V (60%), 200A @ 28V (100%)
  • Polarity: DC constant current
  • TIG Arc Start: Lift arc start feature
  • Connection Type: 6-pin remote (Lincoln), Dinse-style cable connections
  • Construction: Weather-resistant design for outdoor use
  • Includes: (2) Twist Mate cable plugs (K852-70), 10 ft power cord
  • Dimensions: 20.25 in D × 9 in W × 13.6 in H; weight 54.5 lb
  • Standards: NEC compliant
