Unit Bearing Motor
Mfr # UB566
Zoro # G9755934
product price: $61.15
/eaKey Features
Motor Sub Application
Refrigerator/Freezer
Output Watts
16 W
HP
1/50
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UB566
Zoro #
G9755934
UPC #
786674070258
Country of Origin
China
Dimensions
Bolt Circle Dia.
2 13/16 in
Length Less Shaft
3 1/16 in
Body Dia.
3 7/16 in
Shaft Dia.
1/4 in
Overall Length
3 5/8 in
Shaft Length
7/16 in
Mounting Stud Length
3/8 in
Lead Length
28 in
Description

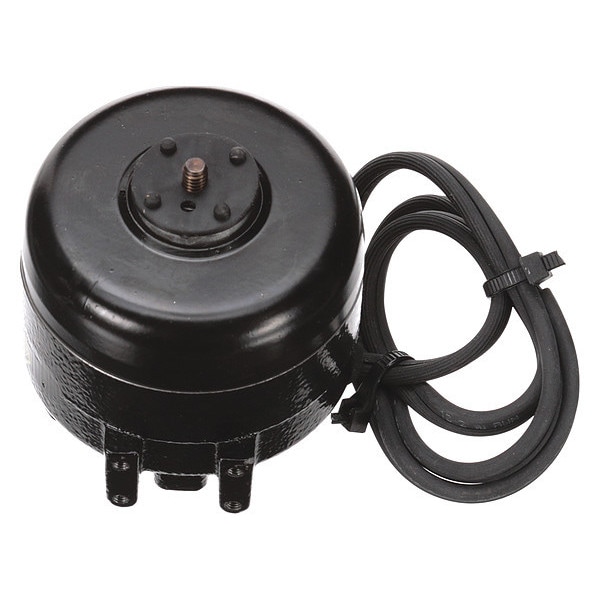

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.8 A Full Load Amps, Non-Standard Frame, Output Watts 16 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
