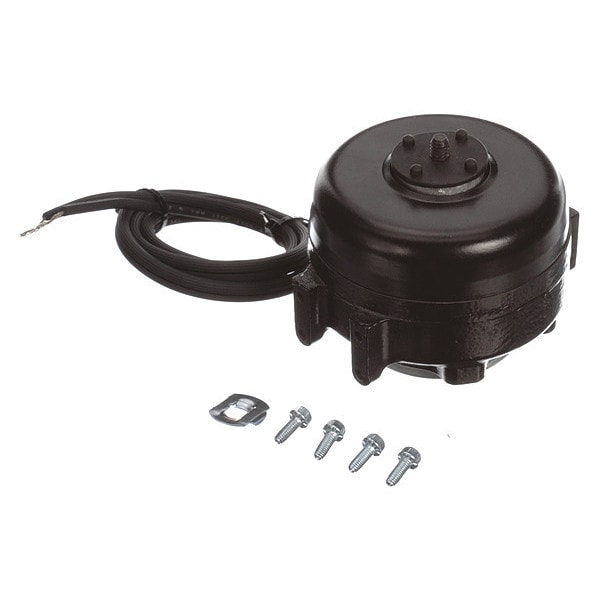

Unit Bearing Motor
Mfr # UB588
Zoro # G9508432
product price:Â $41.39
/eaKey Features
Motor Sub Application
Refrigerator/Freezer
Output Watts
4 W
HP
1/250
RPM Range
1,401-1,500
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
UB588
Zoro #
G9508432
UPC #
786674070104
Country of Origin
China
Dimensions
Shaft Length
7/16 in
Shaft Dia.
1/4 in
Overall Length
3 3/16 in
Mounting Stud Length
3/8 in
Body Dia.
3 7/16 in
Length Less Shaft
2 9/16 in
Bolt Circle Dia.
2 13/16 in
Lead Length
28 in
Description
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/250 HP, Nameplate RPM 1,450, No. of Speeds 1, Voltage 115V AC, 0.29 A Full Load Amps, Non-Standard Frame, Output Watts 4 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
