Shop FINISH THOMPSON

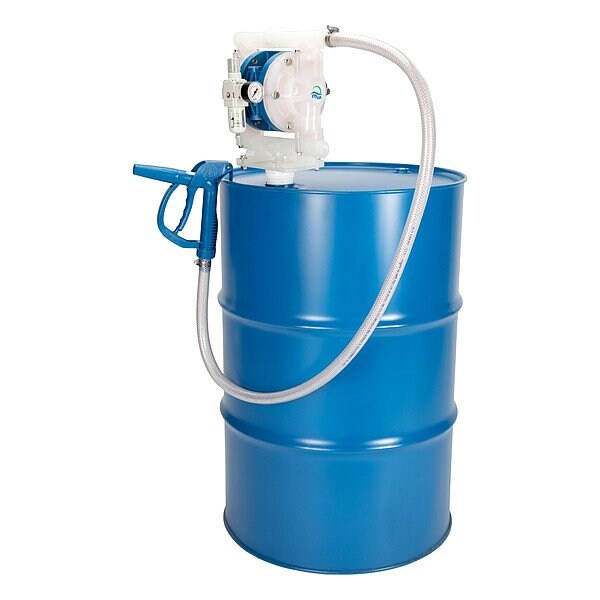

Air Drum Pump, 19 gpm, 100 psi, 1:1

  • Mfr # FT05P-PP-2TPC-N4-K1 KIT

  • Zoro # G221682464

product price:  $1,632.99
/ea
Free Shipping & Returns

Key Features

Adapter Connection Diameter
2 in
Pressure Ratio
1:1
Thermal Protection
No
Maximum Outlet Pressure
100 psi
Maximum Viscosity
5,000 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FT05P-PP-2TPC-N4-K1 KIT
Zoro #
G221682464
UPC #
-
Country of Origin
United States

Dimensions

Adapter Connection Diameter
2 in
Hose Length
60 in
Spout Connection Size
3/4 in
For Container Size
55 gal
Air Inlet Connection Size
1/4 in
Suction Tube Length
40 in
Hose Inside Diameter
3/4 in
Spout Length
3/4 in
Air Outlet Size
1/2 in

Details

Pressure Ratio
1:1
Thermal Protection
No
Maximum Outlet Pressure
100 psi
Maximum Viscosity
5,000 cps
Maximum Air Pressure
100 psi
Static Protection
Not Groundable
Air Inlet Connection Type
FNPT
Includes
Clamp, Dip Tube, Filter Regulator, Fittings, Hose, Pump
Pump Technology
Diaphragm
Discharge Tube Outlet OD
1 1/4 in
Hose Cover Material
PVC
Item
Air Drum Pump
Meter Type Included
No Meter Included
Suction Tube Material
Polypropylene
Nozzle Operation
Manual
Discharge Tube Outlet ID
3/4 in
Hazardous Location Class
Not Rated
Housing Material
Polypropylene
Minimum Fluid Temperature
32 Degrees F
Air Consumption
30 scfm
Maximum Head Pressure
100 psi
Includes Follower Plate
No Follower Plate Included
Standards
CE
Spout Material
Polypropylene
Variable Speed
Yes
Duty Cycle
Continuous
Spout Connection Type
Hose Barb
Power Source - TS Only
Air
Includes Spout
Yes
Includes Suction Tube
Yes
Discharge Connection Type
NPT
Includes Nozzle
Yes
Mounting Bracket Included
No Mounting Bracket Included
Adapter Material
Polypropylene
Container Cover Type Included
No Cover Included
For Container Type
Drum
Noise Level
72.1 dB
Hose Tube Material
PVC
Maximum Flow Rate
19 gpm
Suction Tube OD
1/2 in
Nozzle Material
Polypropylene/FKM
Includes Discharge Hose
Yes
Maximum Fluid Temperature
158 Degrees F
Maximum Head
43 ft
Includes Bung Adapter
Yes
Minimum Air Pressure
20 psi
Chemical Compatibility
Suction Tube ID
1/2 in
Wetted Material
PP/PTFE
Power Source
Air

Description

Air Drum Pump, Spout Connection Size 3/4 in, Suction Tube Material Polypropylene, Discharge Connection Type NPT, Spout Length 3/4 in, Thermal Protection No, Air Outlet Size 1/2 in, Air Consumption 30 scfm, Hose Length 60 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 72.1 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Polypropylene
