  9. Pump, 1/2" NPTF, 264 Max. GPH, Brass, Bypass
Shop All Rotary Pumps
Fluid-O-Tech

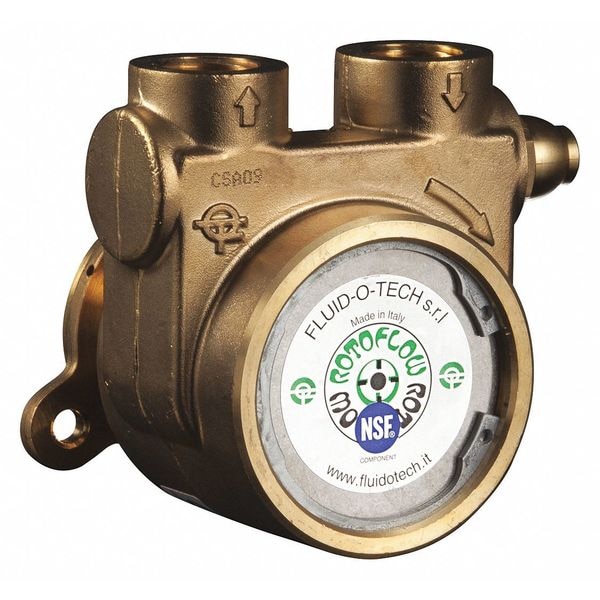

Pump, 1/2" NPTF, 264 Max. GPH, Brass, Bypass

product price: $153.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting 3-Bolt Flange
  • GPH 264 gph
  • Body Material Brass
  • Max. Temp. (F) 158 Degrees F
  • GPH of Water @ 200 PSI 253 gph
See all product information

Product Information

Dimensions

Manufacturer Warranty Length 15 mo
Overall Length 4.1 in
Shaft Outer Diameter 1/8 in
Media Intake Connection Size 1/2 in
Overall Width 4.4 in
Overall Height 3.9 in
Discharge Connection Size 1/2 in

Details

Item Rotary Vane Pump
Mounting 3-Bolt Flange
GPH 264 gph
Body Material Brass
Max. Temp. (F) 158 Degrees F
GPH of Water @ 200 PSI 253 gph
GPH of Water @ 100 PSI 259 gph
GPH of Water @ 50 PSI 261 gph
Relief Pressure Max. (PSI) 260 psi
GPH of Water @ 150 PSI 256 gph
Inlet/Outlet NPTF (In.) 1/2 in
Shaft Stainless Steel
Max. Pressure (PSI) 260 psi
External Relief Not Required
Relief Valve PSI Setting 125 psi
Min. Flow Rate (GPH) 245 gph
Built-In Relief Valve
GPH of Water @ 250 PSI 245 gph
Compliance NSF
By-Pass Yes
Max. Flow (GPH) 264 gph
Shaft Material Stainless Steel
Includes Relief Valve
Vane Material Carbon
For Media Type Water
Standards NSF
NSF 169 Listed Yes
Flow Rate - Maximum 230 gph
Flow Rate @ 200 psi 218 gph
Flow Rate - Minimum 210 gph
Feet of Head - Maximum 240 psi
Flow Rate @ 250 psi 245 gph
Flow Rate @ 50 psi 225 gph
Media Intake Connection Type FNPT
Operating Temperature - Maximum 158 Degrees F
Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC
Flow Rate @ 150 psi 220 gph
Flow Rate @ 100 psi 222 gph
Includes Filter No
Viscosity - Maximum 150 cps
Operating Pressure - Maximum 290 psi
Operating Temperature - Minimum 23 Degrees F
Seal Material Buna-N
Discharge Connection Type FNPT

Description

Rotary Vane Pump, Flow Rate - Maximum 230 gph, Feet of Head - Maximum 240 psi, Mounting Type 3 Bolt Flange, Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type Water, NSF 169 Listed Yes, Operating Pressure - Maximum 290 psi

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
