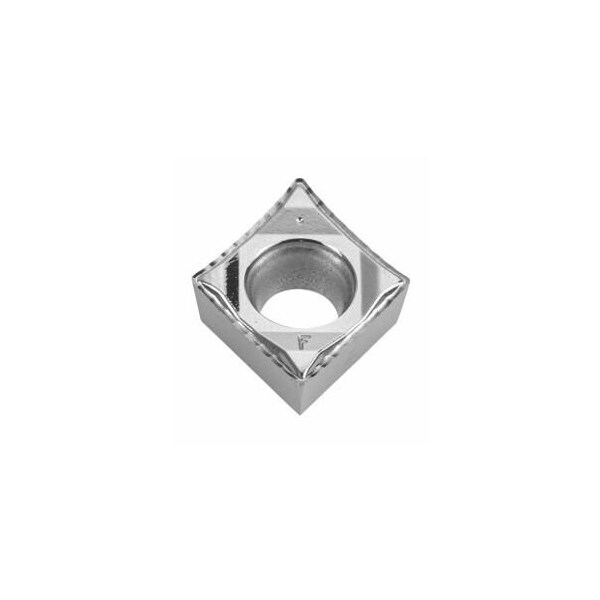

Carbide Turning Insert, Diamond, CCGT09T302, for Aluminum
Mfr # 260056 HU7315-1
Zoro # G414822899
product price:Â $14.75
/ea
Sold in multiples of 10 for $147.50
Key Features
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
3
Insert Size
09T302
Chip-Breaker
AF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
260056 HU7315-1
Zoro #
G414822899
UPC #
-
Country of Origin
Austria
Dimensions
Insert Size
09T302
Corner Radius
0.2 mm
Max. Cutting Depth (ap max)
3.25 mm
Min. Cutting Depth (ap min)
0.15 mm
Insert Thickness
2.5 mm
Cutting Depth
0.05 mm
Details
Item
Indexable Insert for Turning
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
3
Chip-Breaker
AF
Grade
HU7315-1
Insert Material
Carbide
Insert Application
Finishing
ISO Number
CCGT 09T302
Cutting Conditions
Continuous
Tolerance
G
No. of Edges
2
Coating
Uncoated
Workpiece Material
Aluminum
Description
CC.T 09T302 HU7315-1 Grade: HU7315-1 Chip breaker: AF Tolerance: G Cutting depth ap: 0.05 0.5 mm Feed f: 0.03 0.1 mm/rev. Cutting speed vc main application: 120 600 m/min
