Shop GRACO

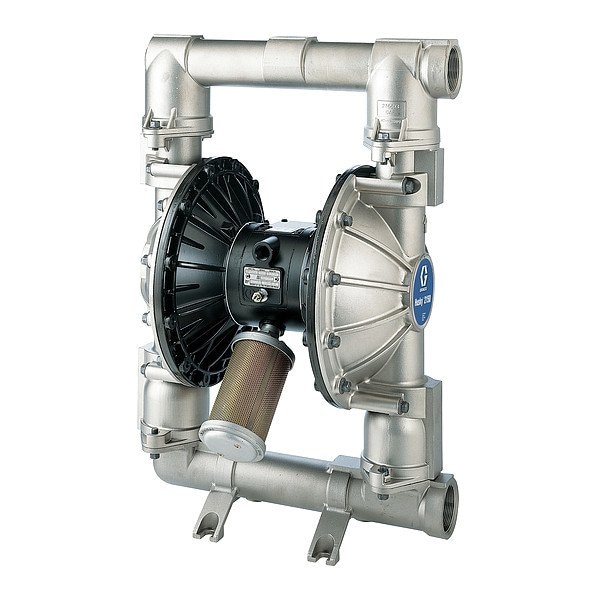

DiaphPump, 1/2inNPT, Santoprene, 150gpm

  • Mfr # DF4666

  • Zoro # G816518338

product price:
$
10,505.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Flow Rate @ 120 psi
150 gpm
Manifold Port Connection Type
Single Port
Viscosity (Maximum)
20,000 cps
Air Intake Pressure (Maximum)
120 psi
Check Seat Material
Santoprene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DF4666
Zoro #
G816518338
UPC #
633955641181
Country of Origin
United States

Dimensions

Solid Diameter (Maximum)
0.25 in
Overall Width
12.5 in
Air Intake Connection Size
1/2 in
Wire Rope Length
17.5 in
Manufacturers Warranty Length
2 yr
Media Intake Connection Size
2 in
Overall Height
23 in
Media Discharge Connection Size
2 in
Overall Length
17.5 in
Length
17.5 in

Details

Item
Diaphragm Pump
Flow Rate @ 120 psi
150 gpm
Manifold Port Connection Type
Single Port
Viscosity (Maximum)
20,000 cps
Air Intake Pressure (Maximum)
120 psi
Check Seat Material
Santoprene
Media Discharge Location
Side
NPSHr
20 ft of head
Pump Assembly Type
Bolt
Standards
ATEX Certified, CE Marked
Valve Material
Santoprene
Air Intake Connection Type
NPT
Air Consumption (Maximum)
175 scfm
Pump Operation Type
Air
Diaphragm Base Material
Santoprene
Media Intake Connection Type
NPT
Series
Husky 2150
Operating Pressure (Maximum)
120 psi
Media Intake Location
Side
Wetted Body Material
Stainless Steel
Chemical Compatibility
Antifreeze, Motor Oil, Water
Valve Type
Ball
Media Discharge Connection Type
NPT
Flow Rate (Maximum)
150 gpm
Center Section Material
Aluminum
Media Temperature (Maximum)
150 Degrees F

Description

Diaphragm Pump, Air Consumption (Maximum) 175 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 150 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Side, Media Intake Connection Size 2 in, Media Intake Connection Type NPT, Media Intake Location Side
