Shop GRACO

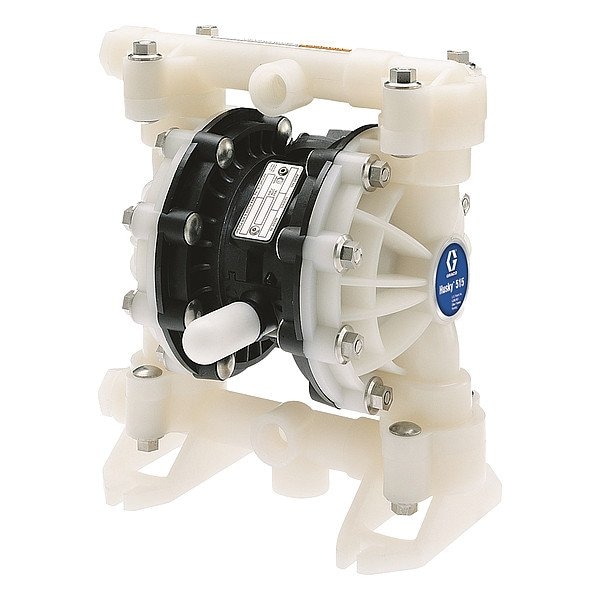

DiaphragmPump, 1/4inNPT, Buna-N, 15gpm

  • Mfr # D51277

  • Zoro # G616518590

product price:
$
1,458.99
/ea
Free Shipping & Returns

Key Features

Media Temperature (Maximum)
180 Degrees F
Media Discharge Connection Type
NPT
Pump Assembly Type
Bolt
Air Intake Pressure (Maximum)
100 psi
Media Intake Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D51277
Zoro #
G616518590
UPC #
633955902497
Country of Origin
United States

Dimensions

Media Intake Connection Size
1/2 in
Overall Height
10.6 in
Media Discharge Connection Size
1/2 in
Manufacturers Warranty Length
2 yr
Overall Width
8.4 in
Air Intake Connection Size
1/4 in
Wire Rope Length
9.7 in
Solid Diameter (Maximum)
0.09 in
Overall Length
9.7 in
Length
9.7 in

Details

Item
Diaphragm Pump
Media Temperature (Maximum)
180 Degrees F
Media Discharge Connection Type
NPT
Pump Assembly Type
Bolt
Air Intake Pressure (Maximum)
100 psi
Media Intake Connection Type
NPT
Air Intake Connection Type
NPT
Diaphragm Base Material
Buna-N
Operating Pressure (Maximum)
100 psi
Series
Husky 515
Valve Material
Buna-N
Media Discharge Location
Center
Center Section Material
Polypropylene
Viscosity (Maximum)
5,000 cps
Flow Rate (Maximum)
15 gpm
NPSHr
15 ft of head
Flow Rate @ 100 psi
15 gpm
Valve Type
Ball
Manifold Port Connection Type
Multiport
Media Intake Location
Center
Chemical Compatibility
Antifreeze, Motor Oil
Pump Operation Type
Air
Check Seat Material
Acetal
Air Consumption (Maximum)
28 scfm
Standards
ATEX Certified, CE Marked
Wetted Body Material
Acetal

Description

Diaphragm Pump, Air Consumption (Maximum) 28 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Acetal, Diaphragm Material Buna-N, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 15 gpm, Manifold Connection Multiport, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Center
