Shop GRACO

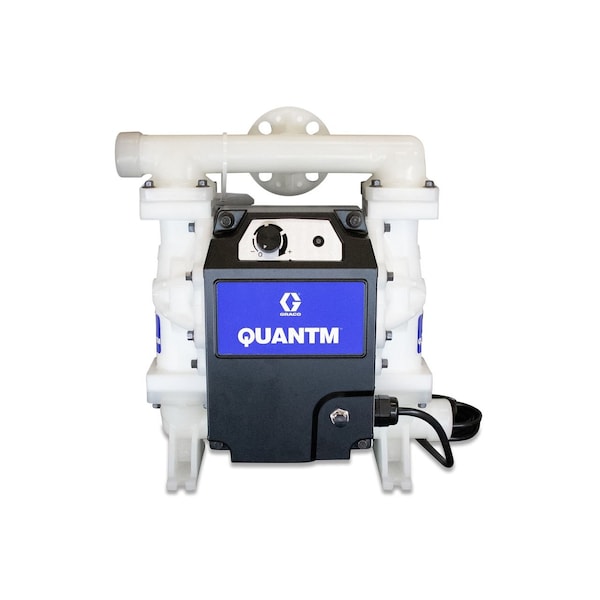

Electric Diaphragm Pump, 0.08 gal, 30 gpm

  • Mfr # TE30-0102

  • Zoro # G723360334

product price:  $4,683.99
/ea
Free Shipping & Returns

Key Features

Media Intake Connection Type
Flange
Hazardous Location Class
Not Rated
Displacement Per Stroke
0.08 gal
Check Seat Material
Polypropylene
Manufacturers Warranty Length
1 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE30-0102
Zoro #
G723360334
UPC #
769946277555
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Solid Diameter (Maximum)
0.125 in
Media Intake Connection Size
1 in
Overall Length
16 in
Media Discharge Connection Size
1 in
Overall Height
17.8 in
Overall Width
13.25 in
Wire Rope Length
16 in

Details

Media Intake Connection Type
Flange
Hazardous Location Class
Not Rated
Displacement Per Stroke
0.08 gal
Check Seat Material
Polypropylene
Media Discharge Port Configuration
Center Horizontal
Diaphragm Reinforcement
Not Reinforced
Media Intake Port Configuration
Center Horizontal
Series
QUANTM I30 Industrial
Flow Rate (Maximum)
30 gpm
Mounting Hardware Material
Plated Steel
Pump Assembly Type
Bolt
Valve Material
PTFE
Standards
UL / CSA
Diaphragm Base Material
PTFE
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Calcium Carbonate, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 50%, Sulfuric Acid 60%, Water
Operating Pressure (Maximum)
100 psi
Fluid Chamber Assembly Type
Bolted
Pump Operation Type
Electric
Nameplate Voltage
100-120V AC
Diaphragm Backing Material
Santoprene
Center Section Material
Aluminum
Material Conductivity
Non-Conductive
Media Intake Location
Bottom
Priming
Self-Priming
Item
Electric Diaphragm Pump
Wetted Body Material
Polypropylene
Media Temperature (Minimum)
32 Degrees F
Includes Clean In Place Technology
No Clean In Place Included
Valve Type
Ball
Viscosity (Maximum)
20,000 cps
Media Discharge Connection Type
Flange
Feet of Head (Maximum)
29 ft
Media Temperature (Maximum)
150 Degrees F
Manifold Connection
Single Port
Phase
Single
Manifold Connection Type
Flange
Media Discharge Location
Top

Description

Electric Diaphragm Pump,0.08 gal,30 gpm
