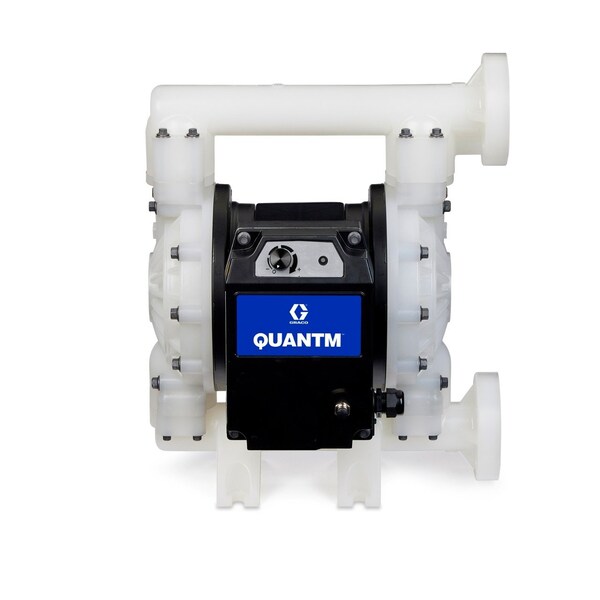

Electric Diaphragm Pump, 0.42 gal, 80 gpm

  • Mfr # TE80-1311

  • Zoro # G623360335

product price:
$
9,051.99
/ea
Free Shipping & Returns

Key Features

Manifold Connection Type
Flange
Diaphragm Base Material
Santoprene
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in
Displacement Per Stroke
0.42 gal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE80-1311
Zoro #
G623360335
UPC #
769946879209
Country of Origin
United States

Dimensions

Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in
Manufacturers Warranty Length
1 yr
Solid Diameter (Maximum)
0.19 in
Overall Height
19.6 in
Overall Length
15.07 in
Overall Width
13.81 in
Wire Rope Length
15.07 in
Length
15.07 in

Details

Manifold Connection Type
Flange
Diaphragm Base Material
Santoprene
Displacement Per Stroke
0.42 gal
Series
QUANTM I80 Industrial
Viscosity (Maximum)
20,000 cps
Nameplate Voltage
380-480V AC
Media Temperature (Minimum)
32 Degrees F
Includes Clean In Place Technology
No Clean In Place Included
Item
Electric Diaphragm Pump
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Calcium Carbonate, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 50%, Sulfuric Acid 60%, Water
Media Temperature (Maximum)
150 Degrees F
Pump Operation Type
Electric
Media Discharge Location
Top
Fluid Chamber Assembly Type
Bolted
Flow Rate (Maximum)
80 gpm
Wetted Body Material
Polypropylene
Valve Type
Ball
Media Discharge Connection Type
Flange
Operating Pressure (Maximum)
100 psi
Hazardous Location Class
Not Rated
Check Seat Material
Santoprene
Feet of Head (Maximum)
29 ft
Center Section Material
Aluminum
Media Intake Location
Bottom
Material Conductivity
Non-Conductive
Media Discharge Port Configuration
Side
Media Intake Connection Type
Flange
Media Intake Port Configuration
Side
Mounting Hardware Material
Plated Steel
Manifold Connection
Multiport
Pump Assembly Type
Bolt
Valve Material
Santoprene
Priming
Self-Priming
Standards
UL / CSA
Phase
Three

Description

Electric Diaphragm Pump,0.42 gal,80 gpm
