- MFR #

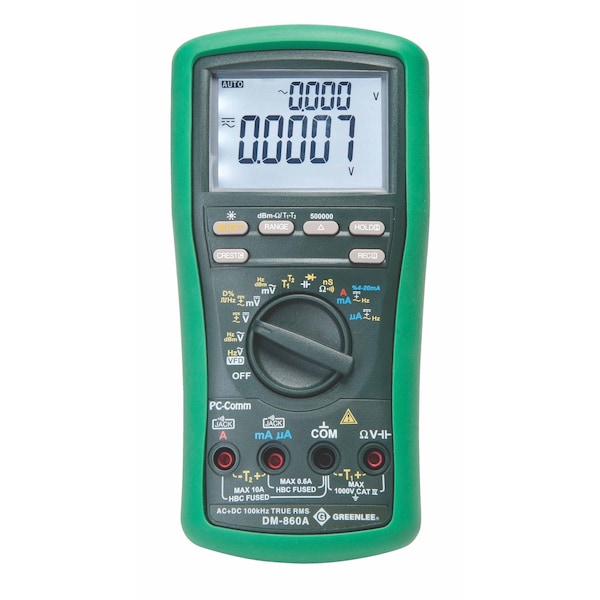

- DM-860A
- Zoro #
- G423353162
- UPC #
- 783310129387
- Country of Origin
- Taiwan, Province of China
- Minimum Capacitance Measurement
- 50 nF
- DC Current Measurement Resolution
- 500 uA
- Parameters Measured
- AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance
- Maximum Capacitance Measurement
- 25 mF
- Resistance Measurement Resolution
- 500 ohm
- Maximum Resistance Measurement
- 50 megaohm
- Minimum Storage Temperature
- -4 Degrees F
- Maximum Storage Temperature
- 140 Degrees F
- Special Features
Audible Input Alert, Auto Ranging, Backlit Display, Crest Capture (Peak Hold) Max, Min and Max-Min Readings, Measures Temperatures up to 1832 Degrees F, Performs Frequency, Temperature and Capacitance Measurements, plus Diode and Continuity Tests, Record Max, Min, and Max-Min and Data Hold, Relative Offset Display Mode, RS-232 Capable, may be Connected to a PC for Extended Measurement Capability with Optional Interface DMSC-9, True RMS, 5-5/6-digit, 500,000 Count Display
- Maximum Frequency Measurement
- 2 MHz
- Maximum Temperature Measurement
- 1,832 Degrees F
- Battery Voltage
- 9 V
- Duty Cycle
- Duty Cycle Test Included
- Minimum Frequency Measurement
- 5 Hz
- Frequency Measurement Resolution
- 5 Hz
- Display Type
- Backlit LCD
- Item
- Multimeter
- Thermal Imaging
- No
- Maximum DC Current Measurement
- 10 A
- Capacitance Measurement Resolution
- 50 nF
- Instrument Counts
- 500,000
- Minimum AC Voltage Measurement
- 500 mV
- Maximum DC Voltage Measurement
- 1,000 V
- Voltage Units
- V
- Auto Power Off
- Yes
- Temperature Types Measured
- Temperature Degrees C, Temperature Degrees F
- Minimum Operating Temperature
- 32 Degrees F
- Calibration Certificate Included
- NIST Traceable
- Diode Test
- Yes
- Maximum AC Current Measurement
- 10 A
- Auto Ranging
- Yes
- Minimum Resistance Measurement
- 500 ohm
- Minimum/Maximum Memory
- Min/Max
- AC Voltage Measurement Resolution
- 500 mV
- CAT Safety Rating
- CAT IV 1000V
- Data Output Type
- USB
- Includes
- 9V Battery, Bead Temperature Probe, Carrying Case, Protective Boot, Test Leads
- Fuse Access
- Yes
- Battery Access
- Yes
- DC Voltage Measurement Resolution
- 500 mV
- Standards
- CUL Listed
- Maximum AC Voltage Measurement
- 1,000 V
- Data Logging
- Yes
- Intrinsically Safe
- No
- AC Current Measurement Resolution
- 500 uA
- Minimum AC Current Measurement
- 500 uA
- Minimum Temperature Measurement
- -58 Degrees F
- Minimum DC Current Measurement
- 500 uA
- Min-Max-Avg Button Included
- Yes
- Audible Continuity
- Yes
- Removable Screen
- No
- Batteries Included
- Yes
- Data Hold
- Yes
- Current Units
- A, mA, uA
- AC Response Calculation
- Average
- Minimum DC Voltage Measurement
- 500 mV
